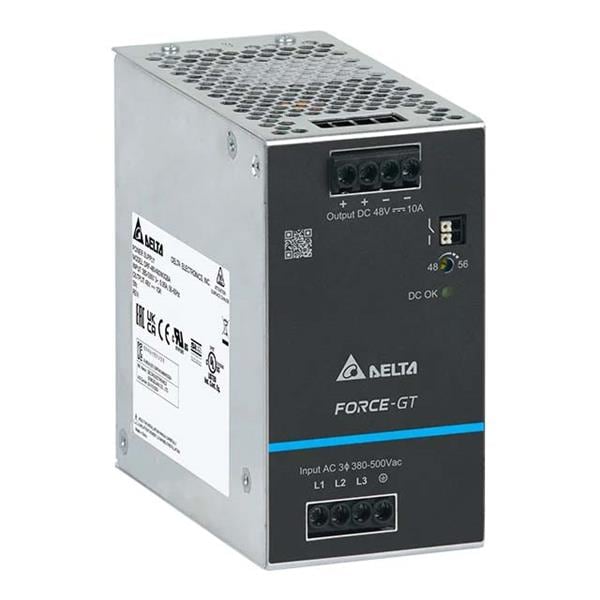

Delta Electronics, Inc. DRF-48V480W3GBA DIN Rail Power Supplies 480W 380-500Vac 48Vdc 10A 3ph Screw Terminal

Width: 65 mm (2.559 in)

Height: 124 mm (4.882 in)

Length: 127.3 mm (5.012 in)

Industry: Industrial

Dimensions: 127.3 mm x 65 mm x 124 mm

Input Type: 3-Phase / Three Phase

Unit Weight: 1.202 kg

Output Power: 480 W

Input Voltage: 320 VAC to 575 VAC, 450 VDC to 800 VDC

Mounting Style: DIN Rail Mount

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 10 A

Output Voltage-Channel 1: 48 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
