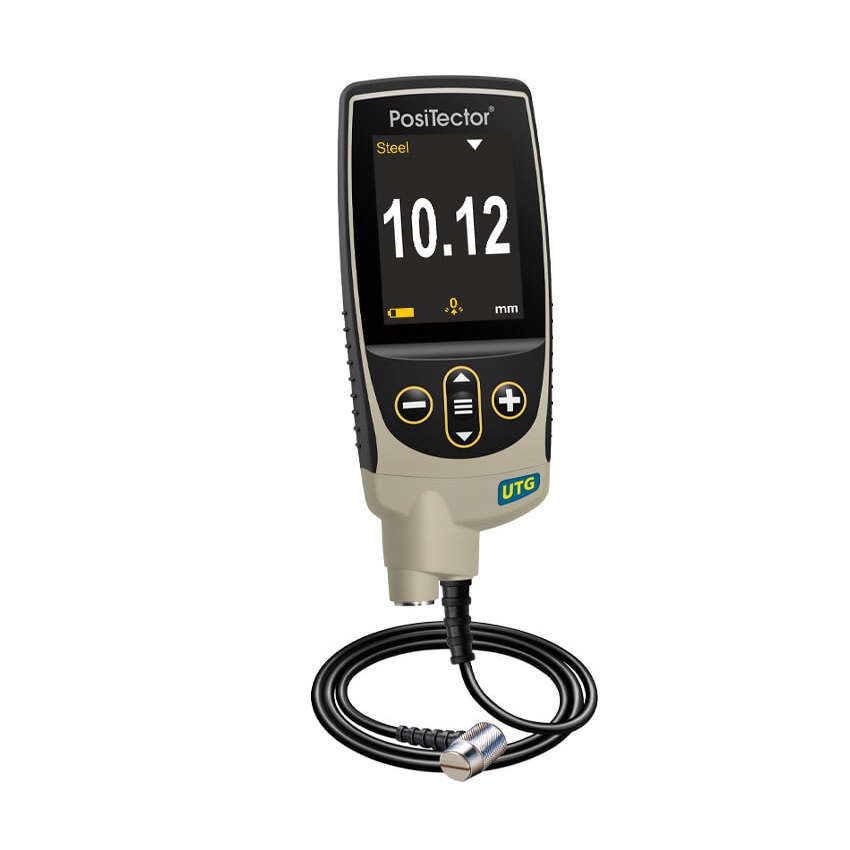

Application: Measures the wall thickness of materials such as steel, plastic and more. Ideal for measuring the effects of corrosion or erosion on tanks, pipes, or any structure where access is limited to one side
Probe Style: 5 MHz Dual Element
Mode: Single Echo
Measurement Range: 1.00 to 125.00 mm (0.040" to 5.000")
Thru-Paint Capability: no
Measurement Rate – Normal: 6 readings/sec
Measurement Rate – Normal: 20 readings/sec
Resolution: 0.01 mm (0.001")
Accuracy: ±0.03 mm (±0.001")
Hi contrast reversible color LCD
Storage of 100,000 readings in up to 1,000 batches and sub-batches
Store thickness, profile and environmental measurements in individual batches
Onscreen help, real time graphing, picture prompting, and more...
Onscreen batch annotation—add notes and change batch names with the built-in keyboard
WiFi technology wirelessly synchronizes with PosiTector.net, downloads software updates, and connects to mobile devices for expanded functionality
Data transfer via USB to a PC or via Wireless Technology
A-Scan with adjustable Gain and screen capture
B-Scan—displays a cross sectional profile of the test material
Automatic V-Path compensation for thin materials
Size: 146 x 61 x 28 mm (5.75" x 2.4" x 1.1")
Weight: 140 g (4.9 oz.) without batteries
ALL GAGES COME COMPLETE with body and probe, couplant, protective rubber holster, belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, PosiTector.net ac
