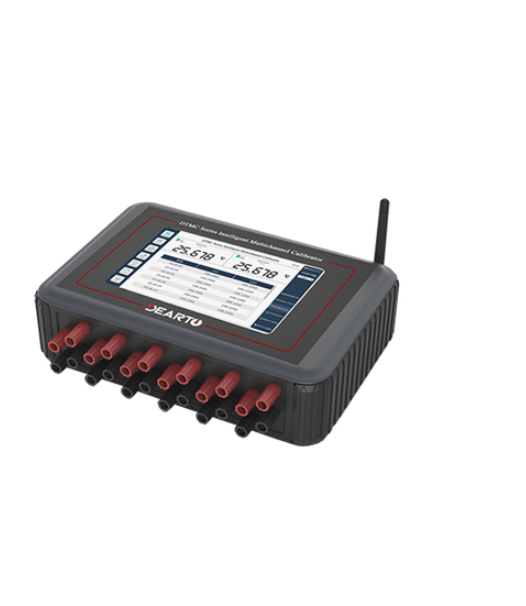

Dearto DTMC - 2G Precision Thermometer Readout (2 channels)

Channel configuration

Channel number: 2

Channel optional function: TC Thermal Resistance Thermistor

Channel technical indicators:

Channel type: Range/ Measuring range/ Resolution/ Accuracy (at 20 ± 5 °C for 1 year)/ Temperature coefficient

Thermocouple/ 100 mV/ -20 mV ~ 100 mV/ 0.1 uV/ ± (60 ppm + 20 ppm)/ 3 ppm

RTD: 100 Ω/ 0 Ω ~ 125 Ω/ 0.1 mΩ/± (30ppm + 5 ppm)/ 1 ppm

RTD: 400 Ω/ 0 Ω ~ 400 Ω/ 0.1 mΩ/ ± (30 ppm + 5 ppm)/ 1 ppm

Temperature technical indicators: Type/Mearsuring range:

Thermocouples

K: - 200℃ ~ 1372℃

J: - 210℃ ~ 1200℃

T: - 200℃ ~ 400℃

E: - 200℃ ~ 1000℃

N: - 270℃ ~ 1300℃

B: 250℃ ~ 1820℃

R: - 50℃ ~ 1768℃

S: - 50℃ ~ 1768℃

RTDs

PT25: -189℃ ~ 961℃

PT100: -200℃ ~ 950℃

General technical indicators

Power requirement: 12V DC  2A

Communication interface: RS232, Wireless

Enclosure: Aluminum alloy + ABS

Dimensions (mm): 230 × 140 × 100

Weight (kg): 2

Operating environment: 5 to 35 °C, 0 to 85% RH

Storage environment: 0 to 70 °C, 0 to 100% RH
