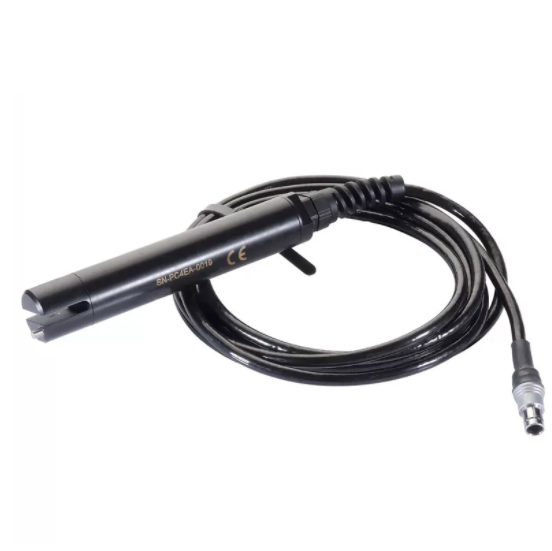

Daruifuno C4E Digital Conductivity Sensor (200mS/cm)

Measure Principle: 4 electrodes (2 graphics, 2 platinum)

Measure Ranges Conductivity:

+ 0~200.0 μS/cm

+ 0~2000 μS/cm

+ 0.00~20.00 mS/cm

+ 0.0~200.0 mS/cm

Resolution: 0.01 to 1, according to the range

Accuracy: ± 1% of the full range

Measure Range Salinity: 5~60 g/Kg

Response Time: <5 s

Working Temperature: 0°C ~+50°C

Temperature Compensation: NTC

Stocking Temperature: -10°C ~+60°C

Signal Interface: Modbus RS485 (standard) and SDI1 (option)

Max Refreshing Time: Max<1s

Sensor Power Supply: 5~12V

Dimensions: Diameter: 27 mm; Length: 177 mm

Weight: 300 g(sensor + cable 3 meters)

Material: PVC, DELRIN, stainless steel

Maximum Pressure: 5 bars

Protection Grade: IP68
