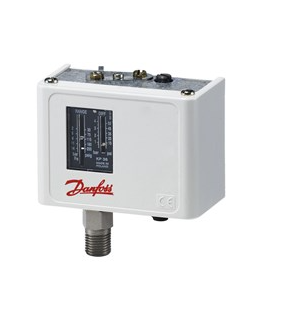

DANFOSS KP36 Pressure Switch (1-10.5 bar)

Ambient temperature range [°C] [Max]: 65 °C

Ambient temperature range [°C] [Min]: -40 °C

Ambient temperature range [°F] [Max]: 149 °F

Ambient temperature range [°F] [Min]: -40 °F

Contact function: SPDT

Contact rating

120Vac,16FLA,96LRA,3APilotDuty

16 A resistive, single phase

240 V ac, 8 FLA, 48 LRA

8 A resistive, single phase

240V dc,12W pilot duty(0.05 A)

Differential [bar]: 0.7 bar

Differential [psi]: 10 psi

Electrical connection: Rubber cable gland

Electrical connection size: 6-14 mm

Enclosure rating IP: IP30

Enclosure rating Nema (~): 1

Max. test pressure [bar] Pe: 22 bar

Max. test pressure [psig]: 319 psig

Max. Working Pressure [bar]: 17 bar

Max  Working Pressure [psig]: 245 psig

Pressure connection size: 1/2

Pressure connection type: G

Pressure Male/Female: Male

Regulation range [bar] Pe [Max]: 10.5 bar

Regulation range [bar] Pe [Min]: 1 bar

Regulation range [psig] Pe [Max]: 150 psig

Regulation range [psig] Pe [Min]: 14.5 psig
