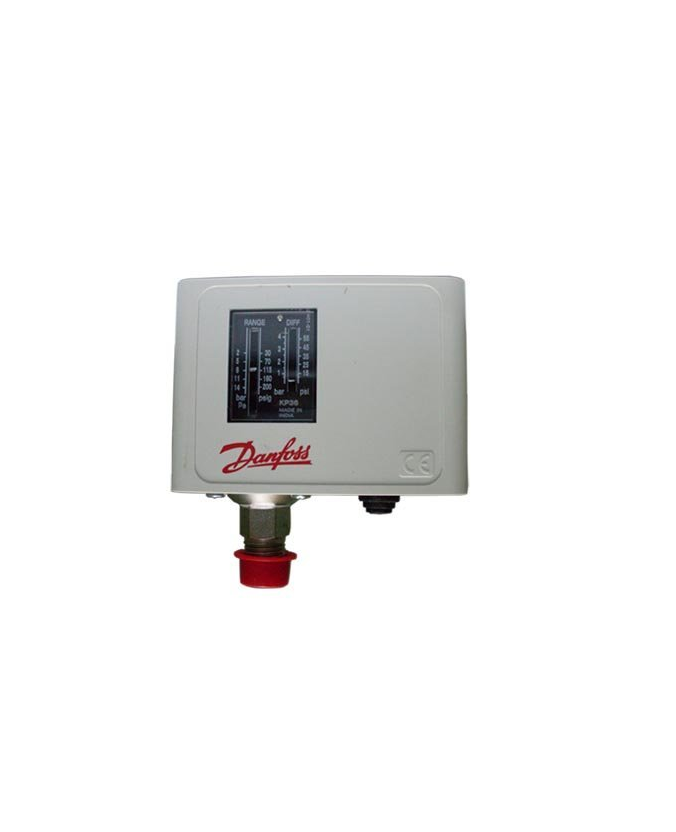

DANFOSS KP36 Pressure Switch (2-14 Bar)

Ambient temperature range [°C] [Max]: 65 °C

Ambient temperature range [°C] [Min]: -40 °C

Ambient temperature range [°F] [Max]: 149 °F

Ambient temperature range [°F] [Min]: -40 °F

Contact function: SPDT

Contact rating

AC15=10 A, 400 V

AC1=16 A, 400 V

AC3=16 A, 400 V

DC13=12 W, 220 V

LR=112 A, 400 V

Differential [bar] [Max]: 4 bar

Differential [bar] [Min]: 0.7 bar

Differential [psi] [Max]: 58 psi

Differential [psi] [Min]: 10 psi

Electrical connection: Rubber cable gland

Electrical connection size: 6-14 mm

Max. test pressure [bar] Pe: 22 bar

Max. test pressure [psig]: 319 psig

Max. Working Pressure [bar]: 17bar

Max. Working Pressure [psig]: 245 psig

Pressure connection size: 1/4

Regulation range [bar] Pe [Max]: 14 bar

Regulation range [bar] Pe [Min]: 2 bar

Regulation range [psig] Pe [Max]: 203 psig

Regulation range [psig] Pe [Min]: 29 psig
