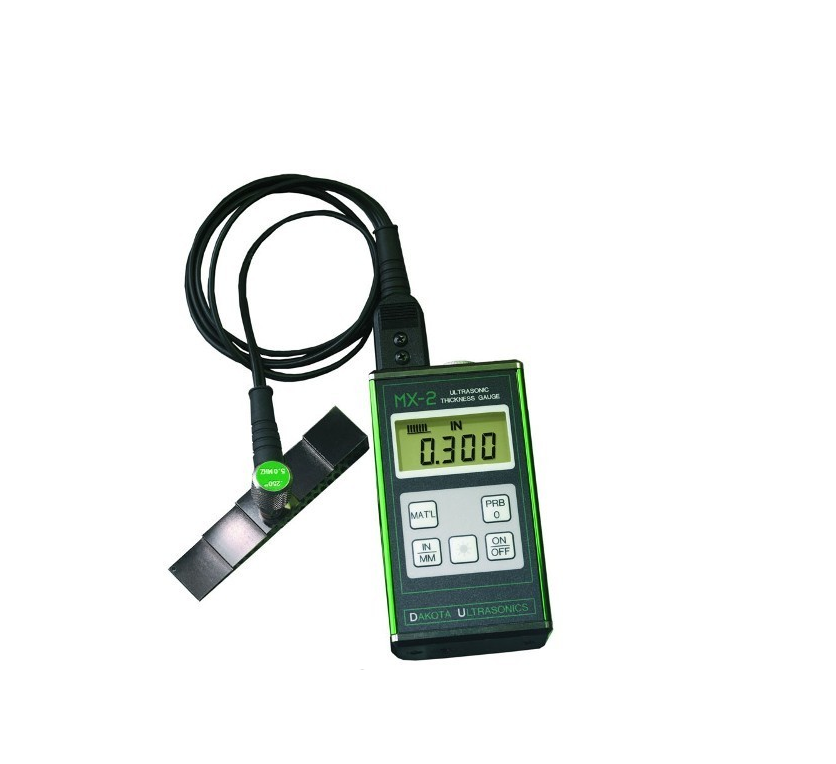

Dakota MX-2 Ultrasonic Thickness Gauge ( 0.63-500mm)

Measuring Range: 0.63 – 500mm

Stainless steel

MeasuringResolution : 0.001 inch (0.01 millimeter)

Units : Inches/Millimeters/Microseconds/metters-second

1 to 10 MHz frequency range.

Velocity Range: .0492 to .3937 in/m s. 1250 to 10,000 meters/sec

Velocity Settings: The MX-1 has 1 custom velocity setting programmed via a PC.

RS232 conect to PC and PC Software

Size: 2.5 W x 4.75 H x 1.25 D inches

63.5 W x 120.7 H x 31.8 D mm

Weight: 10 ounces

Operating Temperature: -20 to 120F (-20 to 50C

Two 1.5V alkaline or 1.2V NiCad AA cells.

Typically operates for 200 hours on alkaline and 130 hours on NiCad.

Velocity Settings: The MX-2 has 8 set velocities and 2 that are custom to the user’s applications. The set velocities are as follows:

1. Steel 4340 (.233)

2. Stainless Steel 303 (.223 )

3. Aluminum 2024 (.251 )

4. Cast Iron (.179 )

5. Plexiglass (.106 )

6. PVC (.094)

7. Polystyrene (.092)

8. Polyurethane (.070 )

9. Custom

10. Custom
