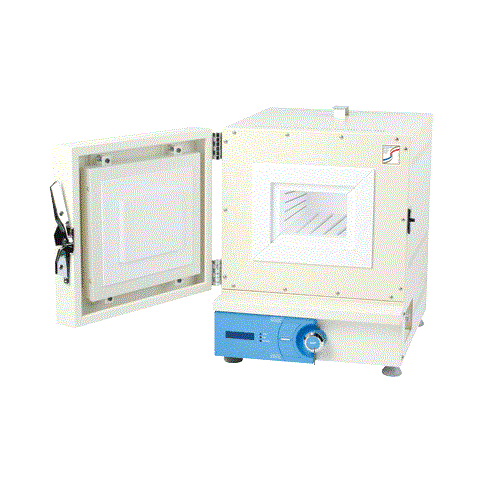

Temp. Range: 300°C~1000°C
Capacity: 14 Lit
Heater: Kanthal A1, Expose Wire Heating Elements, 4-Side Heating
Thermocouple: K-type Thermocouple
Heating Power: 4 kW
Required time to be reached 800°C: 20 min
Timer & Alarm: 99hr 59 min (Continuous run), Error status & Timer-end
Display: Digital LCD with Back-Light Function
Controller: Digital PID Controller with Jog-Dial Switch (Turn+Push)
Program Function: 4 Patterns with 10 Segments
Safety Circuit: Over-Temp./-Current protection, Sensor Error Detection, Safety Switch for Door Opening
Material: Ceramic Fiber with Heating Wire-Internal, Powder Coated steel-External, Ceramic Fiber-Insulation
Dimension(w x d x h):
+ Internal (cm): 25 x 35 x 16
+ External (cm): 55 x 59 x 62
Gross Weight: 73 kg
Electrical Reqts.: 1 Phase, AC 230 V, 50/60Hz
Spare Ceramic Fiber Plate:
DH.WF211.03 (1) Ceramic Fiber Plate, 120x215mm, "FS1103" for 3Lit
DH.WF211.05 (1) Ceramic Fiber Plate, 140x265mm, "FS1105" for 4.5Lit
DH.WF211.12 (1) Ceramic Fiber Plate, 190x265mm, "FS1112" for 12Lit
DH.WF211.14 (1) Ceramic Fiber Plate, 240x310mm, "FS1114" for 14Lit
DH.WF211.27 (1) Ceramic Fiber Plate, 280x280mm, "FS1127" for 27Lit
DH.WF211.63 (1) Ceramic Fiber Plate, 400x400mm, "FS1163" for 63Lit
Optional Glove:
K9.26592 (2) Glove, Heat Resistant, 800°C, 1 Pair, L330mm
AS1.7896.01 (3) Glove, Heat Resistant, 1000°C, 1 Pair, L450mm
AS1.7896.02 (3) Glove, Heat Resistant, 1000°C, 1 Pair, L350mm
