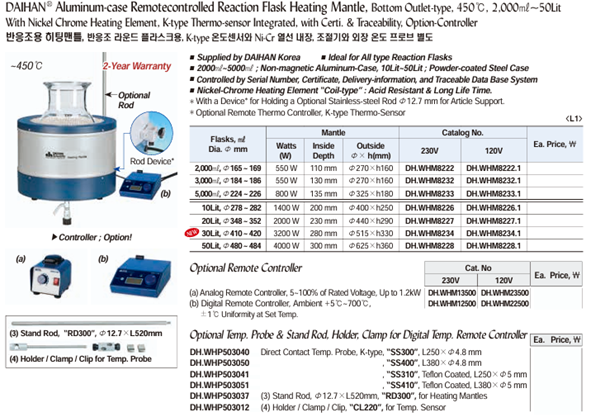

DaiHan DH.WHM8234 Aluminum-case Remotecontrolled Reaction Flask Heating mantle (30 Lit, 3200W)

- Ideal for All type Reaction Flasks

- 2000㎖~5000㎖ ; Non-magnetic Aluminum-Case, 10Lit~50Lit ; Powder-coated Steel Case

- Controlled by Serial Number, Certificate, Delivery-information, and Traceable Data Base System

- Nickel-Chrome Heating Element “Coil-type” : Acid Resistant & Long Life Time.

* With a Device* for Holding a Optional Stainless-steel Rod Φ12.7 mm for Article Support.

* Optional Remote Thermo Controller, K-type Thermo-Sensor

- Flasks:

+ ㎖ :30Lit

+Dia. Φ mm: Φ410 ~ 420

-Mantle:

+ Watts (W) : 3200 W

+ Inside Depth: 280 mm

+ Outside Φ× h(mm): Φ515×h330

Datasheet
