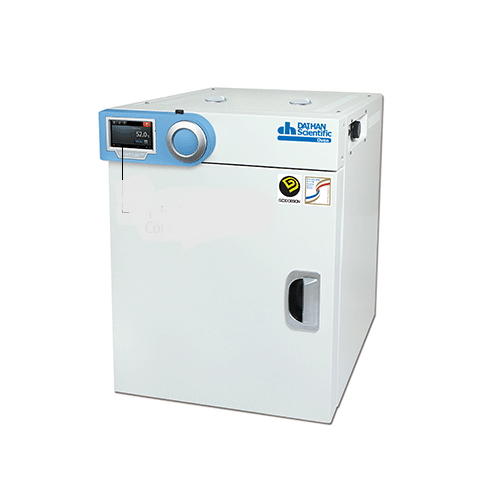

Capacity: 105 Lit
Dimension(w x d x h):
+ Interior(mm): 485 x 409 x 535
+ Exterior(mm): 653 x 712 x 882
Heater Power: 1.4 kW
Temp.Range: Room Temp +5°C to 230°C
Temp.Fluctuation: ±0.5°C at 100°C, ±0.6°C at 150°C
Temp.Variation: ±1.2°C at 100°C, ±2.2°C at 150°C
Temp.Sensor: PT 100
Control Resolution: ±0.1°C
Heat-up Time: 30 min. to 100 °C, 45 min. to 150 °C
Recovery Time (Door open 30 sec): 10 min. to 100°C, 12 min. to 150°C
Controller: Smart Lab™ Controller
RS232 Port: Available to connect with PC
Display: 4" Full Touch Screen TFT LCD
Timer: 99hr 59 min (delay/continuous function)
Storage: Temperature and Timer setting values
Material:
+ Internal: Stainless-steel(#304), Corrosion Resistant
+ External: Powder Coated Steel
+ Insulation: Glass Wool
Shelf(included):
+ 2 Wire shelf
+ Load per Stainless-steel Wire Shelf: 16 kg
Ventilation: (2ea) Ventilation hole with Stainless-steel Cap, Hole Diameter 40mm
Circulation: Gravity Type
Safety device: Over Temp. and Over Current Protector, Sensor Error Detector
Alarm: Error Status and Timer-end
Net Weight(kg): 69
Power Consumption: 1390 W
Energy Consumption at 100°C: 187 Wh
Energy Consumption at 150°C: 337 Wh
Electrical Reqts: 230V, 50/60Hz
Spare Stainless-steel Wire Shelf
DH.W0N11032 Wire Shelf, for 32 Lit, "ONS032", w280 x d280mm
DH.W0N11050 Wire Shelf, for 50 Lit, "ONS050", w340 x d310mm
DH.W0N11105 Wire Shelf, for 105 Lit, "ONS105", w455 xd375mm
DH.W0N11155 Wire Shelf , for 155 Lit, "ONS155", w520 x d440mm
