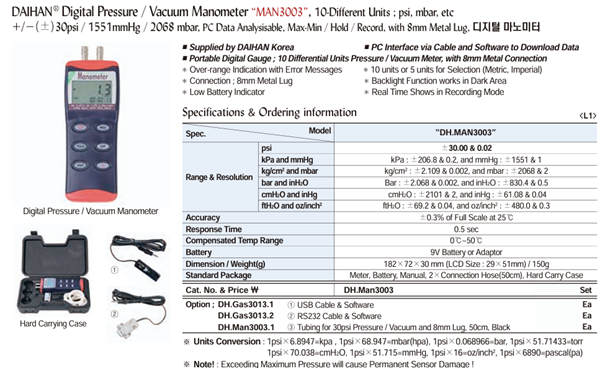

DaiHan DH.MAN3003 Digital Pressure / Vacuum Manometer

Range & Resolution:

- psi: ±30.00 & 0.02

- kPa and mmHg: kPa : ±206.8 & 0.2. and mmHg : ±1551 & 1

- kg/cm2 and mbar: kg/cm2 : ±2.109 & 0.002. and mbar : ±2068 & 2

- bar and inH2O: Bar : ±2.068 & 0.002. and inH2O : ±830.4 & 0.5

- cmH2O and inHg: cmH2O : ±2101 & 2. and inHg : ±61.08 & 0.04

- ftH2O and oz/inch2: ftH2O : ±69.2 & 0.04. and oz/inch2 : ±480.0 & 0.3

Accuracy: ±0.3% of Full Scale at 25℃

Response Time: 0.5 sec

Compensated Temp Range: 0℃~50℃

Battery: 9V Battery or Adaptor

Dimension / Weight(g): 182×72×30 mm (LCD Size : 29×51mm) / 150g

Standard Package: Meter. Battery. Manual. 2×Connection Hose(50cm). Hard Carry Case

Datasheet
