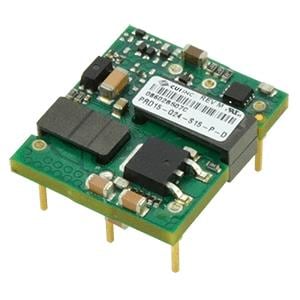

CUI Inc PRD15-Q24-S12-N-D Isolated 15.6W 9-36Vin 12V 1.3A Neg logic DIP

Width: 24.4 mm (0.961 in)

Height: 8.4 mm (0.331 in)

Length: 27.9 mm (1.098 in)

Industry: Industrial

Unit Weight: 10 g

Output Power: 15.6 W

Input Voltage: 9 V to 36 V

Mounting Style: Through Hole

Isolation Voltage: 2 kV

Number of Outputs: 1 Output

Input Voltage - Max: 36 V

Input Voltage - Min: 9 V

Input Voltage, Nominal: 24 V

Output Current-Channel 1: 1.3 A

Output Voltage-Channel 1: 12 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
