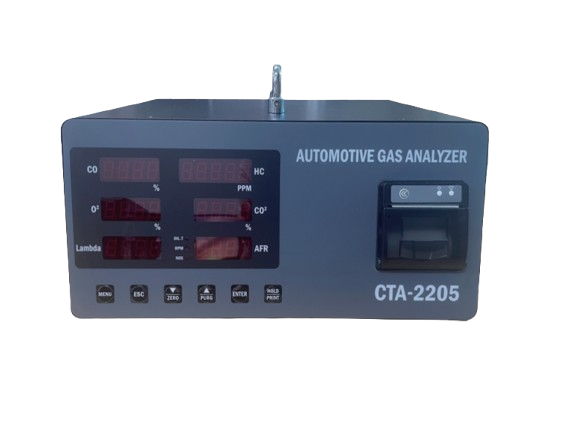

CT&G CTA-2205 Automotive Emission Analyzer (CO, HC, CO2, O2, λ (air surplus rate), AFR, NOx (optional))

Measuring items: CO, HC, CO2, O2, λ (air surplus rate), AFR, NOx (optional)

Measuring method: CO, HC, CO2 by NDIR method; O2, NOx by electrochemical cell

CO measuring range: 0.00 – 9.99 %

CO resolution: 0.01 %

CO display: 4-digit 7-segment LED

HC measuring range: 0 – 9999 ppm

HC resolution: 1 ppm

HC display: 4-digit 7-segment LED

CO2 measuring range: 0.0 – 20.0 %

CO2 resolution: 0.1 %

CO2 display: 4-digit 7-segment LED

O2 measuring range: 0.00 – 25.00 %

O2 resolution: 0.01 %

O2 display: 4-digit 7-segment LED

Lambda (λ) measuring range: 0.0 – 2.000%

Lambda (λ) resolution: 0.001%

Lambda (λ) display: 4-digit 7-segment LED

NOx measuring range (optional): 0 – 5000 ppm

NOx resolution (optional): 1 ppm

NOx display (optional): 4-digit 7-segment LED

Repeatability: Less than ±2% FS

Response time: Within 10 seconds (more than 90%)

Warming up time: About 5 – 6 minutes

Sample collecting quantity: 4 L/min

Power supply: AC110V or AC220V ±10%, 50/60Hz

Power consumption: About 50 W

Operation temperature: -10°C – 40°C

Dimensions: 370 (W) × 300 (D) × 165 (H) mm

Weight: About 7 kg

Basic accessories: Probe, hose, spare fuse, leak test cap, spare filter, operation manual, power cord

Options: RS232 communication cable, printer, printer paper

Datasheet
