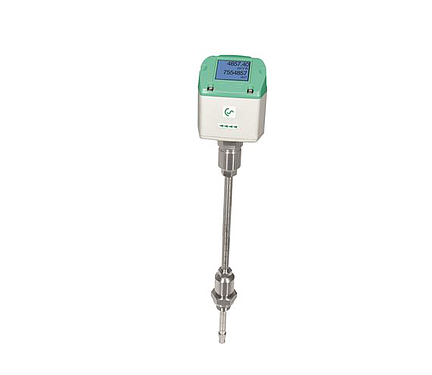

CS Instruments VA 500 Flow Sensor for Compressed Air and Gases

Measurement: flow, consumption and speed

Unit of choice: m³ / h (factory setting)

m / min, l / min, l / s, ft / min, cfm, m / s, kg / h

Measurement principle: Measurement of heat

Sensor: Pt45, Pt1000

Measurement instruments: air, gas

Operating Temperature: -30 ... 100 ° C probe tube

-20 ... 70 ° C in the house

Operating pressure: up to 50 bar

Power supply: 18 to 36 VDC

Power consumption: up to 5W

Digital output: RS 485 (Modbus RTU)

Analog output: 4 ... 20 mA

Pulse output: pulse output (dry contact)

passive: max. 48Vdc, 150mA

Ability to adjust values ​​with display keys

Accuracy: ± 1.5% m.v. *, ± 0.3% f.s. *

Display: 1.8 "TFT option. Resolution: 220 x 176

Mounting: G½ "

Material: Stainless steel 1.4301 / 1.4404

Protection class IP65
