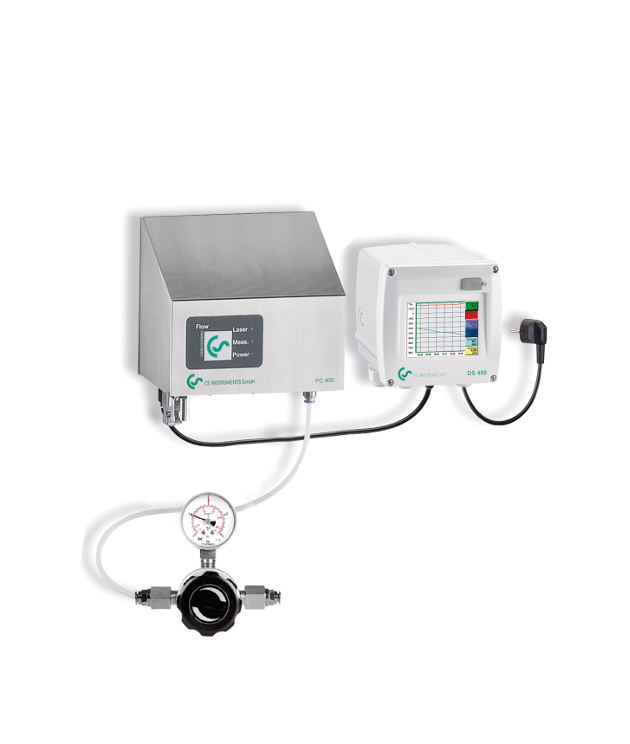

CS Instruments PC 400 and DS 400 Particle Counter

Measured medium: Compressed air (free from aggressive, corrosive, acid, toxic, flammable and oxidising components) as well as gas types like N2, O2, CO2.

Further gas types on request

Field of application: In case of compressed air after filtration

In case of gases / pure gases also without filtration

Parameter: Number of particles per m³ (relative to expanded air:

20 °C, 1000 hPa)

Size channels for the PC 400 0.1 µm:

Particle size 0.1…0.5 µm: Number or particles per m³

Particle size 0.5…1.0 µm: Number or particles per m³

Particle size 1.0…5.0 µm: Number or particles per m³

≥0,1 ≥0,2 ≥0,3 ≥0,5 ≥0,7 ≥1,0 ≥2,0 ≥5,0 µm

Size channels for the PC 400 0.3 µm:

Particle size 0.3…0.5 µm: Number or particles per m³

Particle size 0.5…1.0 µm: Number or particles per m³

Particle size 1.0…5.0 µm: Number or particles per m³

≥0,3 ≥0,5 ≥0,7 ≥1,0 ≥1,5 ≥2,0 ≥3,0 ≥5,0 µm

Operating pressure: Max. input pressure on the pressure reducer: 40 bar

Humidity of measured gas: <= 90% rel. humidity, pressure dew point max. 10 °C, non-condensable humidity

Ambient temparature: 5...40 °C

Temperature of the mea sured medium: 0...40 °C

Compressed air connection: 6 mm PTFE-hose incl. quick coupling

Flow rate: 28.3 l/min (1 cfm)

Interface: RS 485 (Modbus-RTU)

Light source: Laser diode

Power supply: 24 VDC, 300 mA

Dimensions: 150 x 200 x 300 mm

Weight: 4 kg

Housing: Stainless steel
