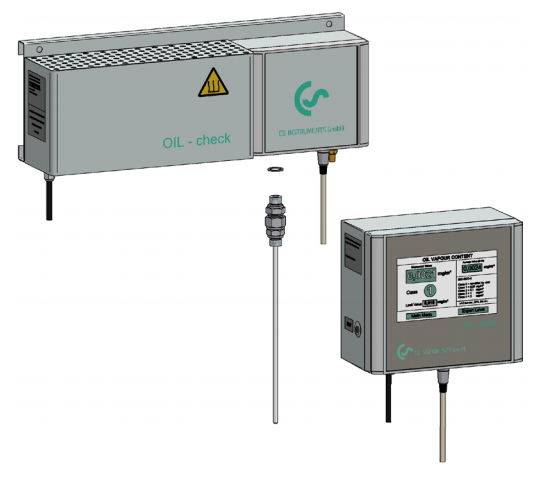

Cs-instruments OILCHECK

Dimensions: 487 x 170 x 120 mm (W x H x D)
Weight: Approx. 6.6 kg
Power supply: 230 V AC 50 Hz +/- 10%
115 V AC 60 Hz +/- 10%

Measurement medium: Compressed air without explosive, corrosive, caustic, toxic, flammable and combustible
Measurement: Surplus oil content in mg of oil / m³ standard (based on 1.0 bar, + 20 ° C, 0% relative humidity) according to ISO 8573-1
Ambient temperature: + 5 ° C to + 45 ° C
Compressed air temperature: + 5 ° C to + 55 ° C
Overload pressure: 3 bar (g) to max. 16 bar (g)
Measurement of air humidity: ≤ 40% rel. humidity, dew point pressure max + 10 ° C, non-condensing moisture
Measuring range: ≤ 0,01 - 5,000 mg / m³ remaining oil content (according to ISO 8573-1)
Accuracy: The measurement accuracy is 0.003 mg / m³.
Detection limit (residue): 0.0006 mg / m³
Quantity of gas: Approximately 2 to 3 liters of standard per minute at absolute pressure of 1.0 bar and + 20 ° C
Display:
Dimensions 230 x 200 x 120 mm (W x H x D)
+ Weight approx. 3.6 kg
+ Protection class: IP 54 standard
+ Operating temperature: +5 .. + 50 ° C
+ Storage temperature: +5 .. + 50 ° C
+ Power cord: Maximum shading diameter: 6.5 mm, crosswise weft: 0.75 mm², with PE safety plug and ground
+ Power supply: 230 V AC 50 Hz +/- 10%
115 V AC 60 Hz +/- 10%
+ Maximum operating current: Max. 0.22 A
+ Power consumption: Max. 50,6 VA
+ Memory: 2 GB of internal memory
