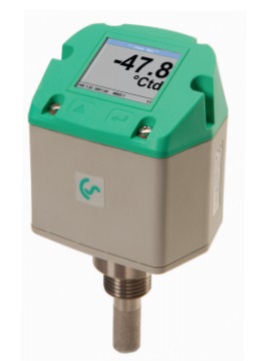

CS Instruments FA 500 (0699 0501) Dew Point Sensor for Refrigeration Dryers (-20…50°C td)

Measuring range: -20…50°C td

Accuracy: ± 1 °Ctd von 50…-20 °Ctd

Pressure range: -1…50 bar

Protection level: IP65

Power supply: 24V VDC (10..36 VDC)

Operating temperature: -20…50°C

Connections: 2 x M12, Modbus RTU (RS485) and alarm

M-Bus (optional)

Ethernet (PoE) (optional)

PC connection: Modbus RTU interface (RS485)

Output Impedance : < 500

Output: 4…20 mA (3-wire technology)

RS 485 (Modbus RTU)

Screw thread : G 1/2 inch

Built-in display

Threshold value adjustable via keypad alarm relay (up to 60 VDC, 0.5 A)

Dimensions: 76.5 x 85 x 75 mm (WxHxD)
