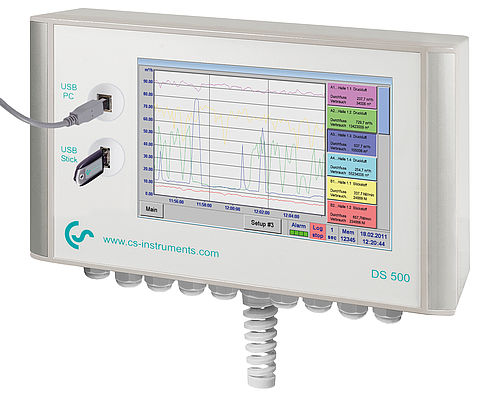

CS Instruments DS 500 (0500 5000) Intelligent Chart Recorder

Dimensions: 280 x 200 x 95 mm

Connector: 18 x PG 12 for sensor and power supply, forwarding alarm

1 x Ethernet RJ 45 connector

Control panel: 250 x 156 mm

Weight: 3.5 kg

Protection class: IP65

Sensor inputs: 4/8/12 for analog and free allocation.

Digital CS sensor for dew point and consumption with SDIFA / VA 400 Series interface.

Digital sensor: RS 485 / Modbus RTU, other bus systems can be made as required.

The CS sensor is similar for pressure, temperature, clamp.

Similar sensors: 0/4 - 20 mA, 0 - 1/10/30 V, pulse, Pt100 / Pt1000, KTY.

Power supply for sensor:

Output voltage: 24 VDC ± 10%

Output: 130 mA continuous operation, 180mA peak

USB interface, USB, Ethernet / RS 485 Modbus RTU / TCP, SDI other bus system on request, optional web server

Output: 4 relay (max switching voltage: 400 VAC / 300 VDC, switching current: min. 10mA, max 6A) Alarm management, programmable free relay, collective alarm.

Analog output, pulse in case the sensor has its own signal

Memory card 2 GB of standard memory, SD memory card, optional up to 4 GB

Power supply 100 - 240 VAC / 50 - 60 Hz, 75VA, special version 24 VDC

Screen color 7 "transmissive TFT touch screen, graphics, curve, statistics

Accuracy: Based on specifications of the sensor

Operating Temperature 0 - 50 ° C

Storage temperature -20 - 70 ° C
