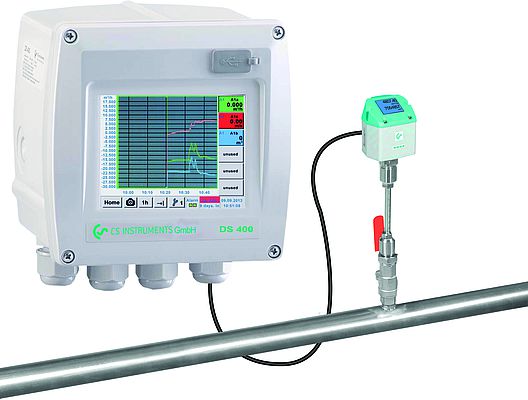

CS Instruments DS 400 (0601 4006) Flow Measurement for Compressed Air and Gases

Dimensions: 118 x 115 x 98 mm

Weight: 545 g

Integrated: 4 Sensor inputs include all sensors of the cs with input signal types as optional analog sensors (0 / 4-20 mA, 0-1 / 10/30 V, pulse) can be configured easily and quickly. Digital sensors can be connected via RS 485, Modbus RTU and SDI

Analog output: 4 ... 20 mA

The 3.5 "color screen with CS Soft Basic software evaluates parameters as graphics and tables.

Power supply: 100 - 240 VAC / 50 - 60 Hz

Flow sensor: VA500

+ Measurement: flow, consumption and speed

Unit of choice: m³ / h (factory setting), m³ / min, l / min, l / s, ft / min, cfm, m / s, kg / min, kg / s

Provide cover:

+ DS 400 chart recorder

Flow sensor VA 500 in standard version (92.7 m / s), sensor length 220 mm
