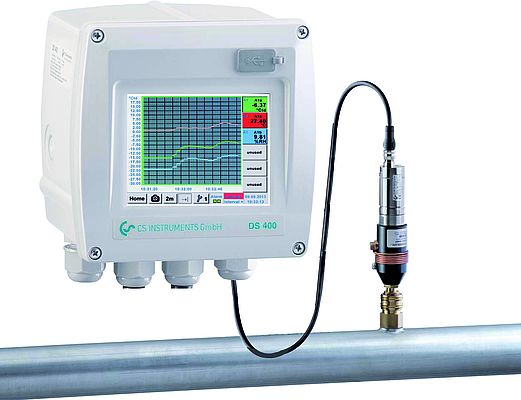

Cs-instruments DS 400 (0601 0512) Dew point set for refrigeration driers (-20～+50°Ctd)

Dimensions: 118 x 115 x 98 mm
Weight: 545 g
Integrated: 4 Sensor inputs include all sensors of the cs with input signal types as optional analog sensors (0 / 4-20 mA, 0-1 / 10/30 V, pulse) can be configured easily and quickly. Digital sensors can be connected via RS 485, Modbus RTU and SDI
Analog output: 4 ... 20 mA
Dewpoint sensor: FA 510 measuring range -20 ... + 50 ° Ctd, precision: ± 1% - ± 3%
Provide cover:
+ DS 400 chart recorder
+ FA 510 dew point sensor for cold dryer. test certificate, 4 ... 20 mA output (3 wire connection) and Modbus-RTU interface (-20 ... + 50 ° Ctd)
Standard chamber up to 16 bar
+ Connecting cable for VA / FA, 5 m with M12 plug
