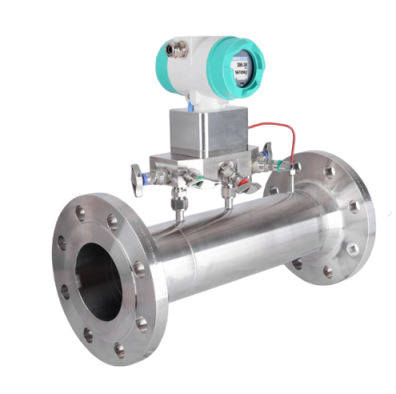

CS Instruments CMM 500 Compressor Master Meter (1:130, 16 bar (g))

Measuring medium: Air, gases

Accuracy: (v..M. = from measured value):

 ± 1% for Qmin up to 0,2 Qmax

 ± 0,5% for 0,2 Qmax up to Qmax

Typically achievable: Accuracy when installing CS inlet and outlet sections:

 ± 0,75% for Qmin up to 0,2 Qmax

 ± 0,3% for 0,2 Qmax up to Qmax

Measuring principle: Differential pressure, Venturi

Measuring range: 1:130

Response time: t 99: < 1 sec.

Medium temperature:-20°~+100 °C

Operating pressure: Max. 16 bar (g), on request 30 bar / 100 bar

Ambient temperature:-30°~+70 °C

Power supply: 18 ~ 36 VDC

Signal output: Standard: RS 485 (Modbus-RTU), 4~20 mA, pulse; Optional: Ethernet Interface, M-Bus

Process connection: Flange according to DIN EN 1092-1 or ANSI Flange

Installation conditions: In horizontal lines or in risers

Datasheet

Manual
