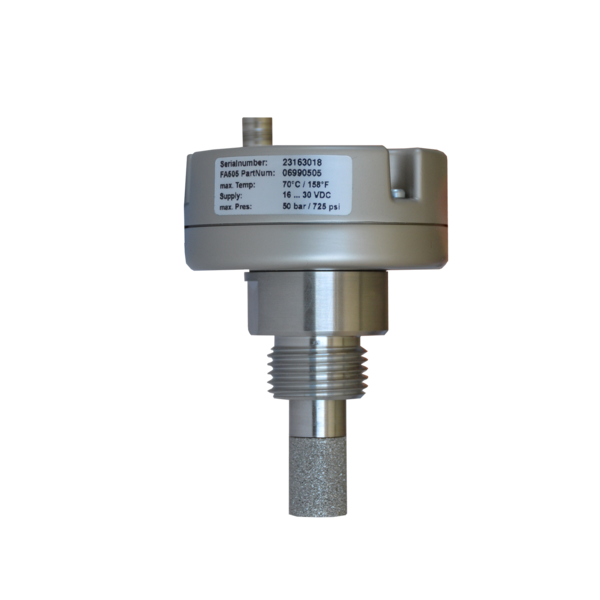

CS Instruments FA 505 Dew Point Sensor (-80...20°Ctd)

Measuring range: -80...20°Ctd, -60...30°Ctd, -20...50°Ctd

Accuracy: ±1°C bei +50...-20°Ctd; ±2°C bei -20...-50°Ctd; ±3°C bei -50...-80°Ctd

Pressure range: -1...50 bar; special version up to 350 bar

Power supply: 24 VDC (10...36 VDC)

Protection class: IP 65

EMV: according to DIN EN 61326-1

Operating temperature: -20...70 °C

Connection: M8, 4-pole

PC connection: Modbus-RTU interface (RS 485)

Output: 4...20 mA n 2-wire technology or RS 485 Modbus

Burden for analogue output: < 500 Ω

Einschraubewinde: G 1/2“

Via service software:

Choose units: % RH, °Ctd, g/m³, mg/m³, ppm, V/V

Scaling: change 4...20 mA

Material housing: zinc alloy

Sensor protection: Sintered filter 50 μm stainless steel
