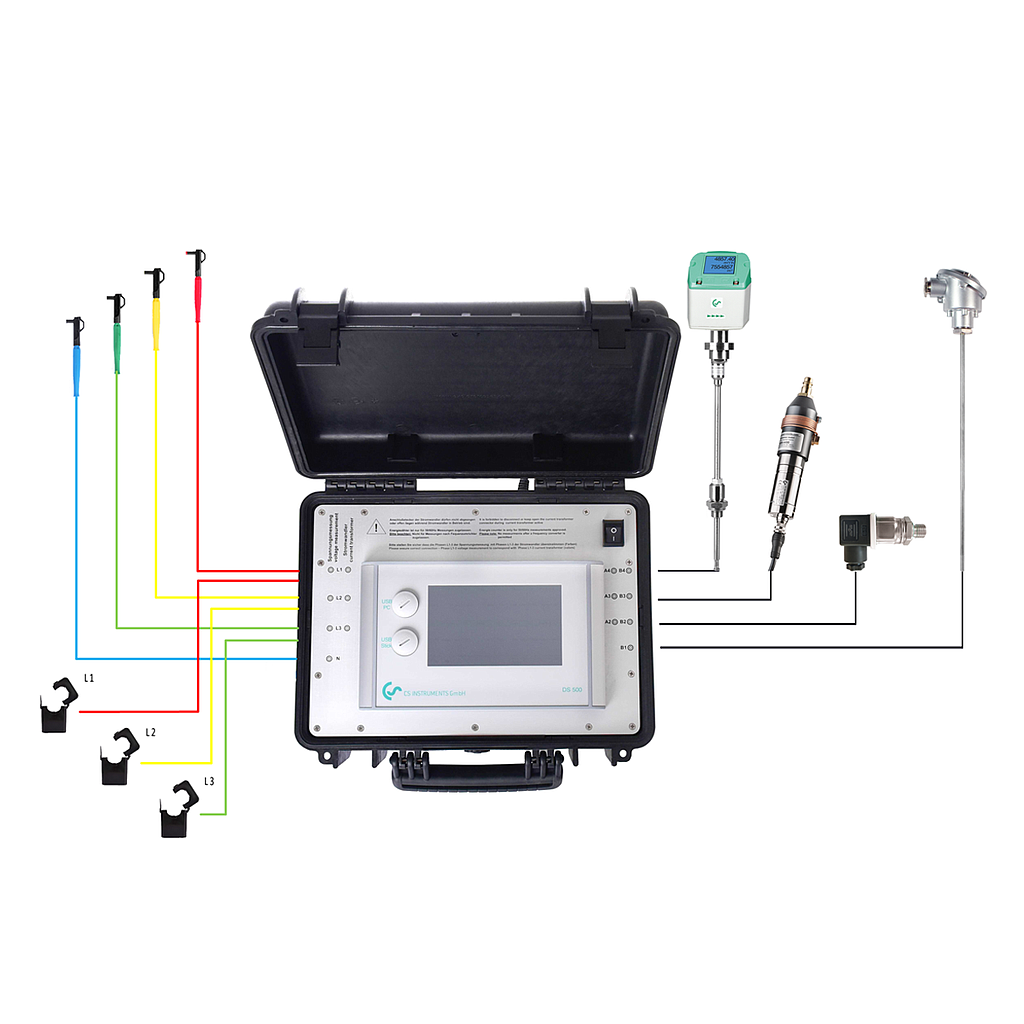

CS Instruments DS 500 PM Mobile Chart Recorder

Case dimensions: 360 x 270 x 150 mm

Weight: 4.5 kg

Material: Diecast, front foil polyester, ABS

Sensor inputs:

3/7/11 sensor inputs for analogue and digital sensors; freely allocatable. See options

Digital CS sensors for dew point and consumption with FA/VA series SDI interface, RS 485/Modbus RTU digital third-party sensors.

Analogue CS Sensors for pressure, temperature, clamp-on ammeters preconfigured. Analogue third-party sensors 0/4...20 mA, 0...1/10/30 V, pulse, Pt 100/Pt 1000, KTY

Voltage supply for sensors:

24 VDC, max. 130 mA per sensor, integrated mains unit, max. 24 VDC, 25 W.

For 8/12 sensor input version: 2 integrated mains units, each max. 24 VDC, 25 W

Interfaces: USB stick, Ethernet/RS 485 Modbus RTU/TCP, SDI (other bus systems on request), webserver optional

Memory card: Micro SD memory card, memory size 16 GB

Power supply: 100…240 VAC, 50-60 Hz

Colour display: TFT transmissive 7" touch panel, graphics, curves, statistics

Accuracy: Please see sensor specifications

Operating temperature: 0…50°C

Storage temperature: -20…70°C

Datasheet
