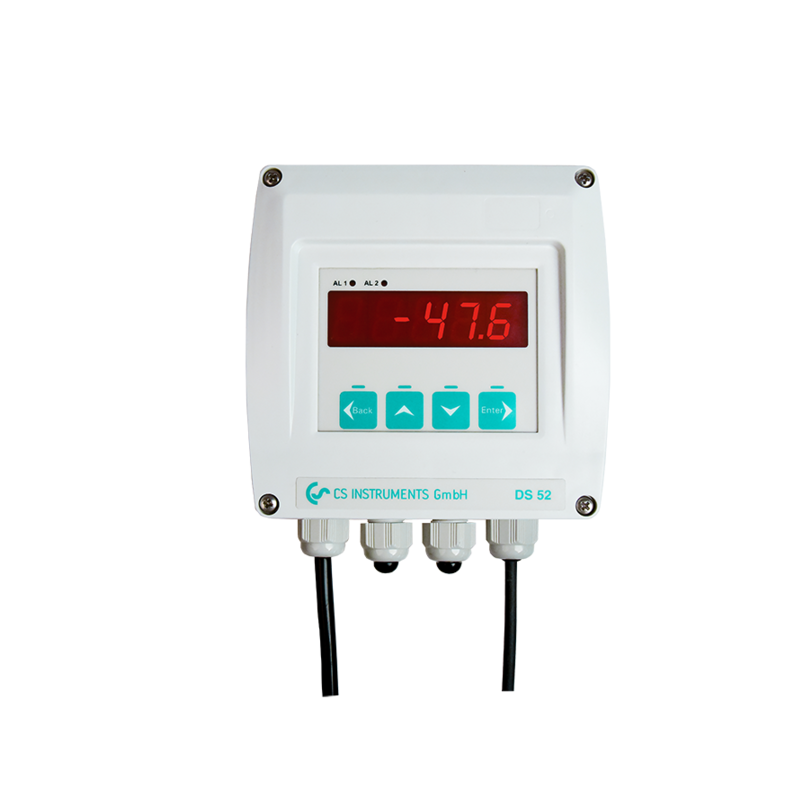

CS Instruments DS 52 LED Process Display (5-digit)

Dimensions: 118 x 133 x 92 mm (WxHxD)

Display: LED, 5-digit, height 13 mm, 2 LEDs for alarm

Keypad: 4 keys: Enter, Back, Up, Down

Sensor input: For sensors with 0 (4)…20 mA signal. Can be connected in 2-/3-/4-wire technology

Accuracy: Max. +/- 20 µA, typically +/- 10 µA

Burden: 100 Ω

Sensor supply: 24 VDC, max. 100 mA

Power supply: (option): 230 VAC, 50/60 Hz (24 VDC or 110 VAC)

Outputs: 2 x relay output, changeover contact, 250 VAC, max. 3 A

Alarm thresholds: Freely adjustable via keypad

Hysteresis: Freely adjustable via keypad

Operating temperature: -10…+60 °C (Storage temp.: -20…+80°C)

Control menu: Can be locked via code for unauthorized access
