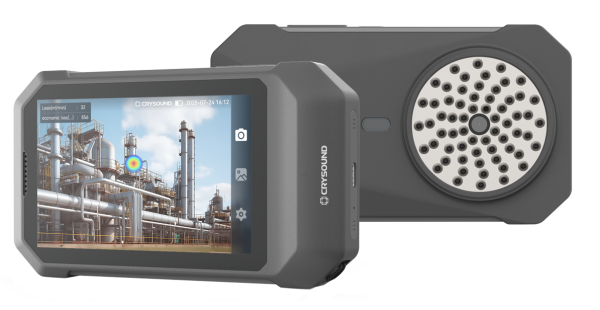

CRYSOUND CRY8025 Pocket Pro Acoustic Imaging Camera (64 CH, 2k ~ 65k Hz, 66° (H) × 52° (V))

Acoustic Parameters

Mic Array: 64 channels

Frequency: 2k ~ 65k Hz

SPL: 28 ~ 132 dB

Dynamic Range: Up to 12 dB

Distance: 0.3 ~ 120 m

Camera

FOV: 66° (H) × 52° (V)

Resolution: 5 MP

Focal Length: 2.26 mm

Autofocus: Yes

LED Light: Yes

Display

Resolution: 800 × 480

Size: 4.3 inches

Screen: Capacitive touchscreen

Brightness: Max 400 nits, adjustable

Storage

Capacity: 32 GB (internal)

Formats: .jpg (image), .mp4 (video), .wav (audio), .cdat (data)

Video Length: Max 5 minutes

Data Export: USB-C and Wi-Fi

Basic Parameters

Size: 150 × 83 × 27.5 mm / 5.91 × 3.27 × 1.08 inches

Weight: 270 g / 0.595 lbs

Wi-Fi: 802.11 a/b/g/n/ac

Bluetooth: BT 5.2

Battery: 3.85 V, 3900 mAh

Power Supply: 9 V DC / 1 A (USB-C charging)

Battery Life: Up to 4 hours

IP Rating: IP54

Operating Temperature: -10 ~ +50 °C

Storage Temperature: -20 ~ +55 °C

Operating Humidity: 10 ~ 95% (non-condensing)

Software report : yes

Features: Sound visualization & localization, gas leak detection and quantification, partial discharge detection, photo & video recording, automatic/manual frequency filtering, PC software post-processing

Hardware Ports

USB-C: 1 × USB 3.0 (charging, HDMI, data export, headphone output)

Language

Chinese, English, Korean, French, Japanese, Russian, German, Italian, etc.
