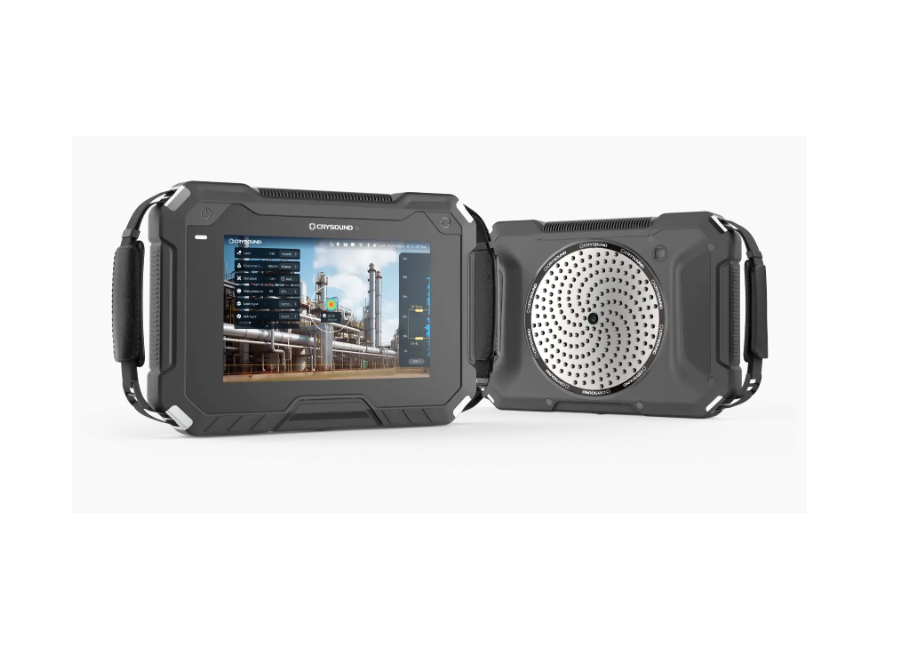

CRYSOUND CRY8024 Pocket Acoustic Imaging Camera (2k – 65k Hz, 66°× 52°)

Acoustic Parameters

Mic Array: 64 channels

Frequency: 2k – 65k Hz

SPL: 28 – 132 dB

Dynamic Range: Up to 12 dB

Distance: 0.3 – 120 m

Camera

FOV: 66° (H) × 52° (V)

Resolution: 5M pixels

Focal Length: 2.26 mm

Autofocus: Yes

LED Light: Yes

Display

Resolution: 800 × 480

Size: 4.3 inches

Screen: Capacitive touchscreen

Brightness: Max 400 nits, adjustable

Storage

Storage Capacity: 32 GB (internal)

Storage Format: .jpg (picture), .mp4 (video), .wav (audio), .cdat (data)

Video Length: Maximum 5 minutes

Data Export: USB-C and Wi-Fi

Basic Parameters

Size: 150 × 83 × 27.5 mm

Weight: 270 g

Wi-Fi: 802.11a/b/g/n/ac

Bluetooth: BT 5.2

Battery

Battery: 3.85 V, 3900 mAh

Power Supply: 9 V DC / 1 A (Charging via USB-C)

Battery Operating Time: Up to 4 hours

Environmental

IP Rate: IP54

Operating Temperature: -10 – +50 °C

Storage Temperature: -20 – +55 °C

Operating Humidity: 10 – 95 % non-condensing

Software Features

Sound visualization and localization

Gas leak detection

Partial discharge detection

Photos and videos recording

Hardware Ports: USB-C: 1 × USB 3.0 for charging, HDMI, data export, and headphone output

Language: English, Chinese, Japanese
