CRYSOUND CRY584E Power Amplifier (20Hz～20KHz±0.1dB)

Maximum output power(continuous): 56W,THD+N<0.01%@1KHz,4ohm

Noise: <-84dBV(A Counting right)

Frequency Range: 20Hz～20KHz±0.1dB

Total Harmonic Distortion(THD): <0.001%@20Hz～400Hz,1W;<0.002%@1KHz

Signal to Noise Ratio (SNR): >107dB

Channel isolation: >92dB

Load: 3-16ohm

Gain: 17.9dB

Input Connector: Balance:XLR,TRS

Input impedance: Differential 20kΩ

Output Connector: Balance:XLR, banana head

Maximum output voltage: 15Vrms

Size: 330*275*70mm

AC power input range: 100～250VAC, 50～60Hz

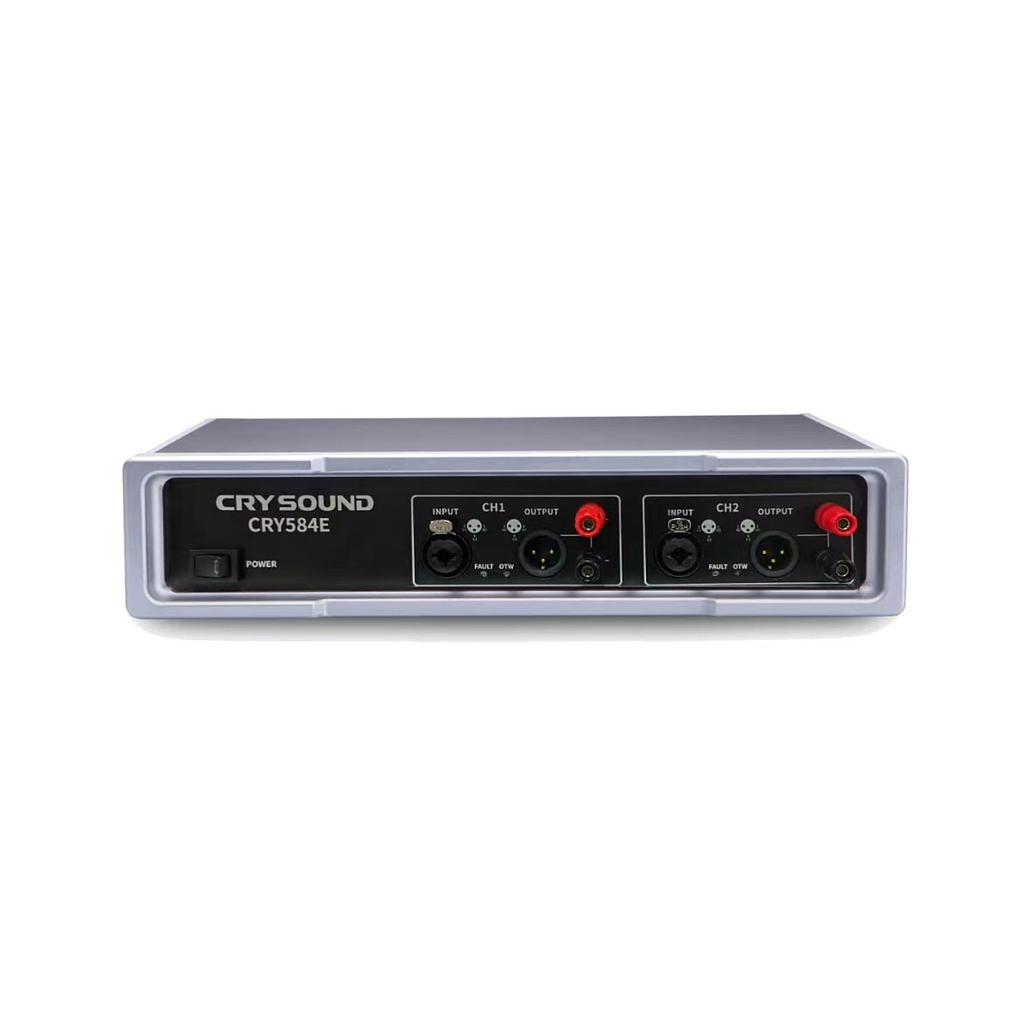

The CRY584E is a state-of-the-art high-performance power amplifier that utilizes energy-efficient Class D amplifier technology to deliver up to 56W of continuous output power. Designed for small to medium power acoustic test scenarios, the device can also serve as a versatile power amplifier for general-purpose electroacoustic testing.
