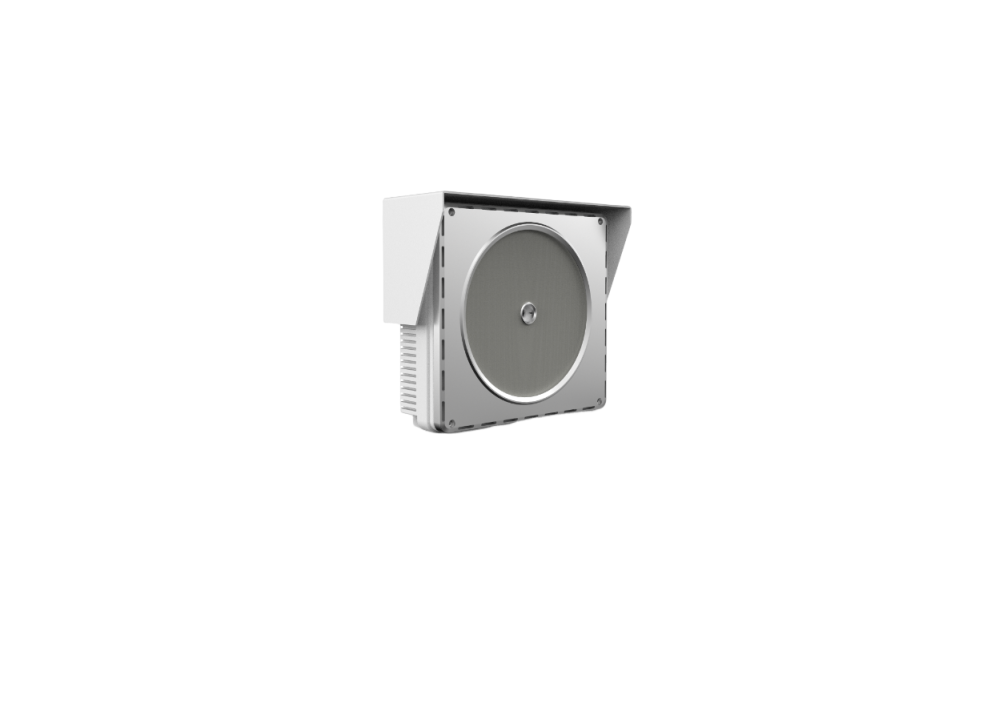

CRYSOUND CRY2623M Fixed Acoustic Imaging Camera (2kHz~48kHz; 0.5~50m)

Number of Microphone Channels: 128 channels

Test Frequency Range: 2kHz ~ 48kHz

Port: RJ45

Data communication: RTSP/RTMP streaming transmission

Camera pixel: 8 million pixel

Frame Rate: 25FPS

Test Distance: 0.5~50m

Weight: About 1.6kg

Size: 183mm X 169mm X 85.35mm

Storage: 8G internal storage, 64G TF card expansion storage

Operating Temperature: -10℃~+50℃

Supply Voltage: DC12-20V

Power Consumption: About 14W

IP Degree of Protection: IP66

Fixed way: Bottom 1/4 -20UNC thread/M5 screw fixing

Explosion-proof certification: CNEX

Intrinsically Safe Power Supply

Intrinsically safe maximum open circuit voltage: DC 6.5V

Intrinsically safe maximum output current: 2.0A
