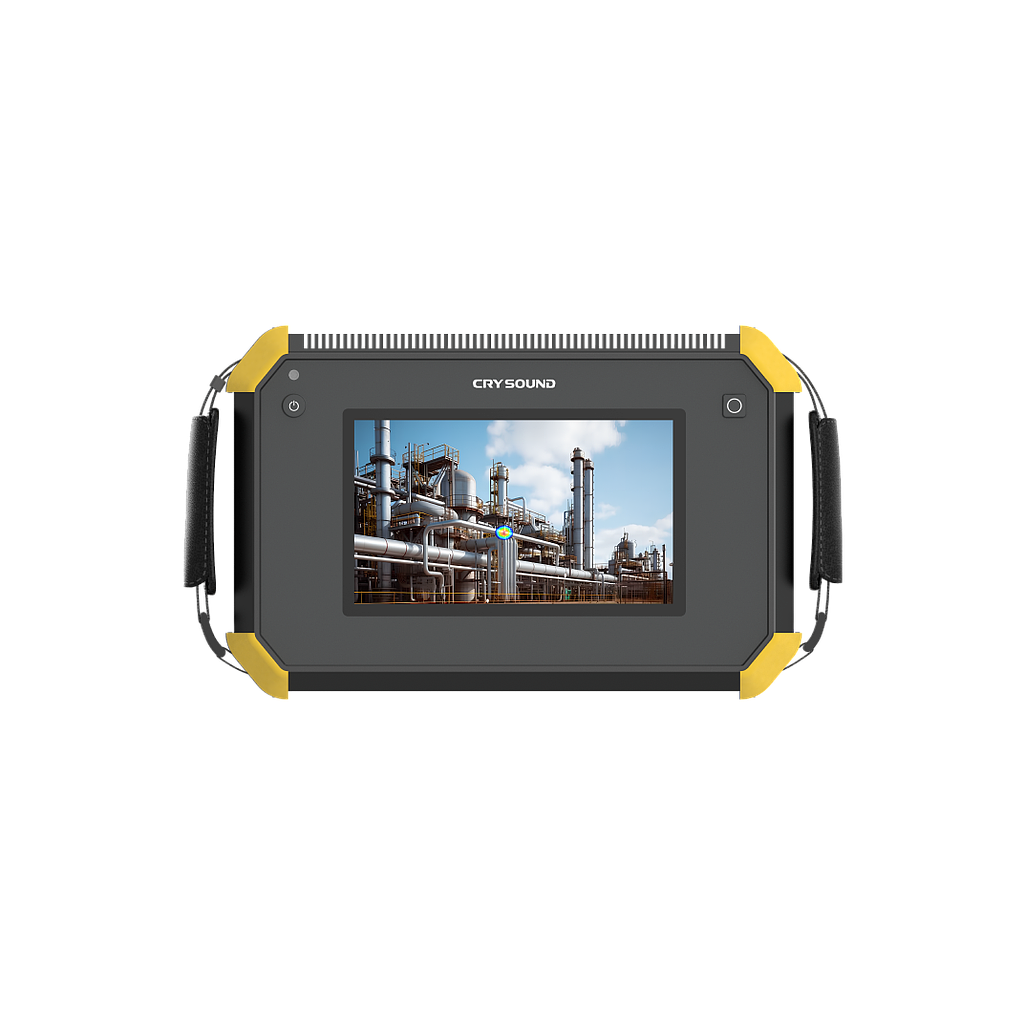

CRYSOUND CRY2623 128-Mic Industrial Acoustic Imaging Camera

Acoustic Specifications

Microphone array: 128 channels MEMS microphone

Effective test bandwidth: 2kHz-48kHz

Dynamic range: 0.5dB-12dB user adjustable

Test sound pressure level range: 25.7-132.5dBA

Auto max/min dB gain: User-settable,minimum test bandwidth 1kHz

Number of digits: 24bit

Sound image FOV: 62°

Sound image frame rate: At least 25 FPS

Leak detection rate: 10m 5bar 0.92ml/s, 0.5m 5bar 0.55ml/s

Detect distances: 0.3m-120m

Camera

Camera FOV: 62°

Camera focal length: 3.04mm fixed focal length

Camera pixel: 8 million pixel

Display

Resolution: 1024*600 (614,400 pixels)

Size: 7 inch

Touch screen: Capacitive touch screen

Brightness: Adjustable

Photo notes: Up to 5 photos notes for reference

Source: Show single or multiple sources

Standard palettes: 3: Grayscale, Ironbow, Blue-Red

Playback function: View photos, videos anytime,and add notes or tags

Storage

Internal storage: About 8G

External storage: TF memory card, at least 64G,expandable to 256G

Data storage format: jpg（Picture）, .mp4（Video）and .wav (Recording)

Video length: 5 minutes

Digital export: TF Card

Power

Battery capacity: 1×6600mAH@7.2V Rechargeable battery and 1×external battery package, continuous

Battery life: 4+6 hours operation time

Charger: USB Type-C port，USB PD protocol supported, 15W

Power consumption: 15W for battery charge；29W for maximum power consumption

Energy management: Sleep/Auto power off modes

Hardware port

3.5 mm audio jack: Headphone output

USB-C: USB 3.0 Type-C USB host port

Operating Environment

Operating environment: -20℃- +50℃，10%-95% no condensation

Storage temperature: -20℃ – +60℃

Charging temperature: 10℃ – +45℃

General Specifications

Ingress Protection (IP): IP54

Size: 272mm×174mm×42mm

Weight: 1.7kg

Self-diagnostic notification: Array-health test function to identify when microphone array needs attention

System: Linux system

Certification: CE, FCC, RoHS-compliant

Supported Language

Language: Chinese, English, Korean, French, Japanese, Russian, German, Italian, EU Spanish, Portuguese, Hungarian, Dutch, Cambodian, Vietnamese, Turkish, Polish

Software

Report types: Gas/Electricity,ISO 50001-compliant

Analysis: Waveform, Spectrum,Spectrogram, leakage assessment,discharge type discrimination
