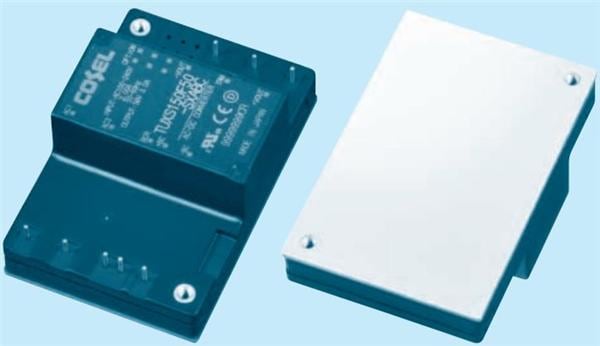

Cosel TUXS150F50 AC-DC Power Modules 150W 50V 30A PS Bus Converter

Width: 2 in

Height: 1.1 in

Length: 3 in

Industry: Industrial

Approvals: UL60950-1, CSA60950-1, EN60950-1, EN50178

Compliance: UL60950-1; CSA60950-1; EN60950-1; EN50178

Efficiency: 94 %

Unit Weight: 150 g

Output Power: 150 W

Input Voltage: 85 VAC to 264 VAC

Cooling Method: Conduction

Mounting Style: Through Hole

Input Frequency: 45 Hz to 66 Hz

Load Regulation: Regulated

Mechanical Style: Encapsulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Input Voltage - Max: 264 VAC

Input Voltage - Min: 85 VAC

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 3 A

Output Voltage-Channel 1: 50 VDC

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C
