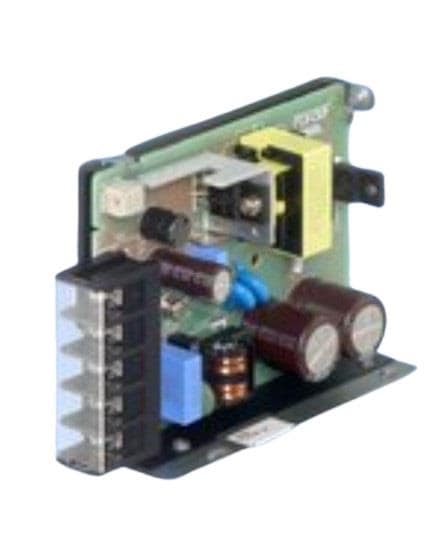

Cosel PDA30F-24 AC-DC Power Supplies 31.2W 24V 1.3A
Manufacturer: Cosel Model: PDA30F-24 - Contact
Width: 82 mm
Height: 31 mm
Length: 120 mm
Industry: Industrial
Approvals: EN61000-4, EN61204-3, UL62368-1
Dimensions: 120 mm x 82 mm x 31 mm
Efficiency: 86.5 %
Unit Weight: 250 g
Output Power: 31.2 W
Input Voltage: 85 VAC to 264 VAC
Mounting Style: Chassis
Input Frequency: 50 Hz, 60 Hz
Load Regulation: 150 mV
Isolation Voltage: 3 kVAC
Number of Outputs: 1 Output
Open Frame/Enclosed: Enclosed
Output Current-Channel 1: 1.3 A
Output Voltage-Channel 1: 24 V
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 20 C
