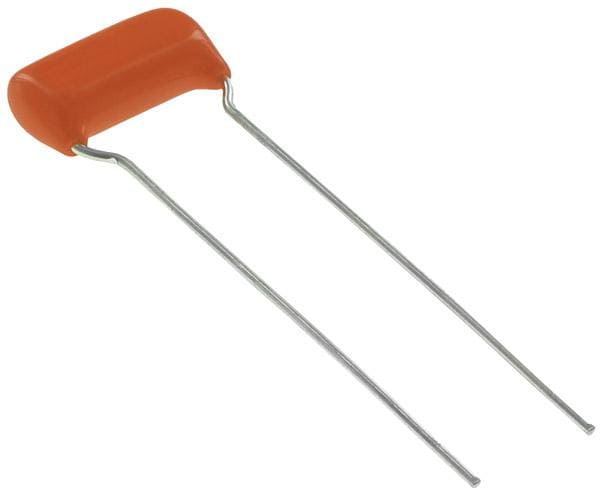

Cornell Dubilier (CDE) 225P33291WD3 Orange Drop, Polyester Film/Foil Capacitors 100V 3300pF ORANGE DROP

Life: 500 Hour

Width: 6.4 mm (0.252 in)

Height: 8.9 mm (0.35 in)

Length: 17.8 mm (0.701 in)

Tolerance: 10 %

Dielectric: Polyester

Lead Style: Inside Bend

Capacitance: 3300 pF

Lead Spacing: 9.5 mm (0.374 in)

Lead Diameter: 0.8 mm

Number of Pins: 2 Pin

Capacitance - nF: 3.3 nF

Capacitance - uF: 0.0033 uF

Termination Style: Radial

Voltage Rating AC: 70 VAC

Voltage Rating DC: 100 VDC

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 55 C
