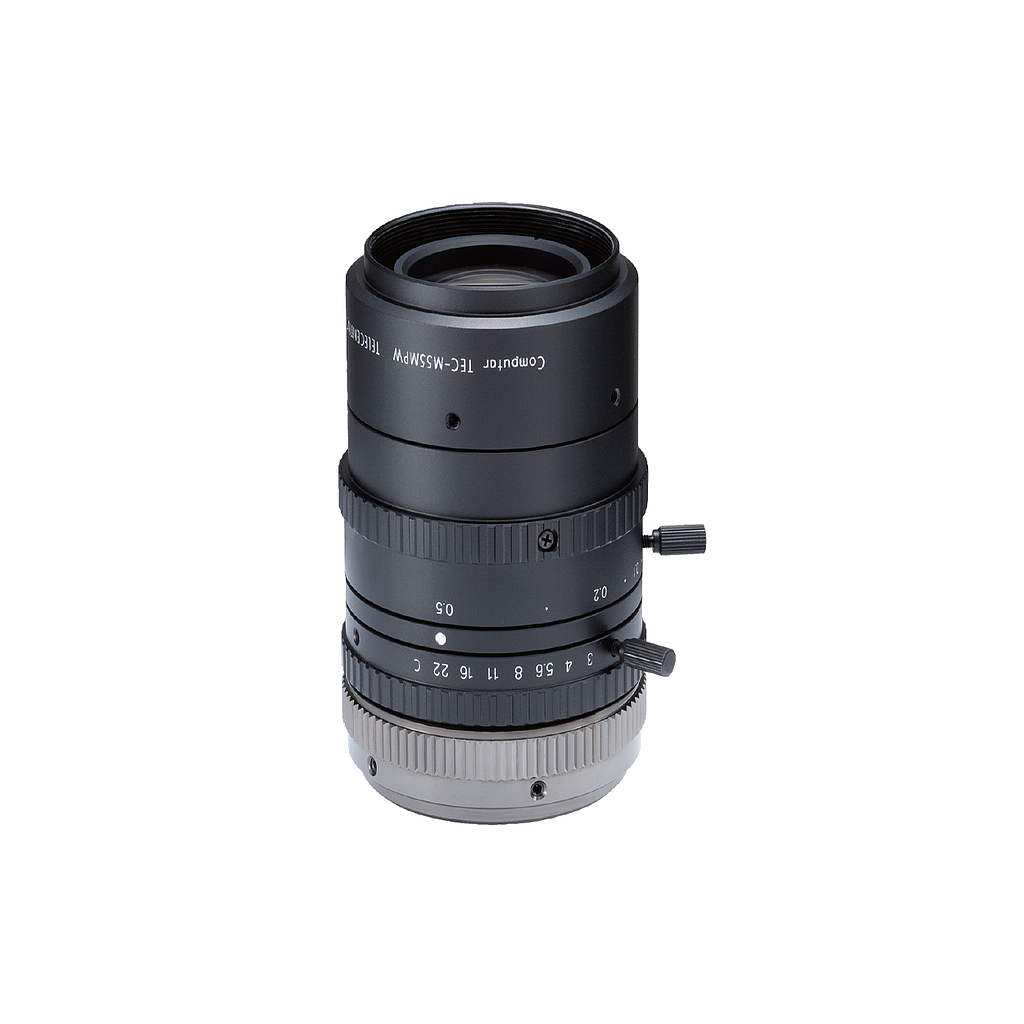

Computar TEC-M55MPW Telecentric Lenses (5MP, 2/3" 55mm, 0.5x (C Mount))

Focal Length: 55mm

Magnification: 0.057X - 0.5X

Max. Image Format: 8.8mm x 6.6mm (φ11mm)

Operation Range: Iris F3.0 ‐ F22C; Focus 0.14m ‐ 1m

Control: Iris: Manual; Focus: Manual

Object Dimension at M.O.D.: 17.4mm(H) x 13.1mm(V) 2/3"

Relative illumination:  94% (at 0.057X), 81% (at 0.5X)

Effective Lens Aperture: Front (φ30.8mm); Rear (φ10.7mm)

Distortion: 2/3type, 0.5% at 0.057X(y=5.5), 0.6% at 0.5X(y=5.5)

Back Focal Length: 17.0mm

Flange Back Length: 17.526mm

Mount: C-Mount

Filter Size: M46.0 P=0.75mm

Dimensions: φ59mm x 93.1mm

Weight: 400g

Operating Temperature: -10℃ ‐ +50℃
