Measured value: Temperature, Two-state signal
Temperature sensor - external probe PT1000:
Measuring range: -200 to +600 °C
Accuracy: ±0.2 °C
Resolution: 0.1 °C
Relay outputs:
Quantity: 2
Maximal voltage: 50 V
Maximal current: 2 A
Maximal power: 60 VA
Binary outputs:
Quantity: 3
Signal for binary input: dry contact, open collector or two-state voltage signal. Inputs are not galvanically isolated.
Minimum pulse duration on binary input: 500 ms
Voltage across open contact: < 3.3 V
Low voltage level: 0 to +0.5 V
High voltage level: +3.0 to +30 V
Operating temperature: -30 to +80 °C
Channels: 1x external temperature probe
Acoustic alarm: from built-in beeper - switchable
Output: Ethernet
Measuring interval: 2 s
Available temperature units: degrees Celsius, degrees Fahrenheit
Communication protocol: WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols: E-mail (SMTP authentication is supported), SNMP Trap, Syslog
Power: 9-30 Vdc
Protection class: IP40
Dimensions: 136 x 117 x 45 mm
Weight: approx. 340 g
Included in delivery:

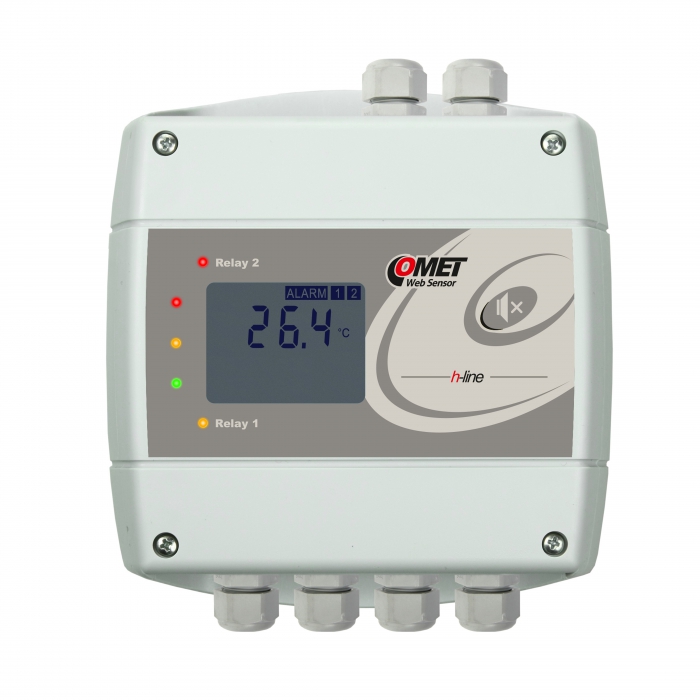

H4531
Instruction Manual
Traceable Calibration Certificate
FREE software TSensor for Configuring of the Transmitter
COMET Cloud for 3 Months
