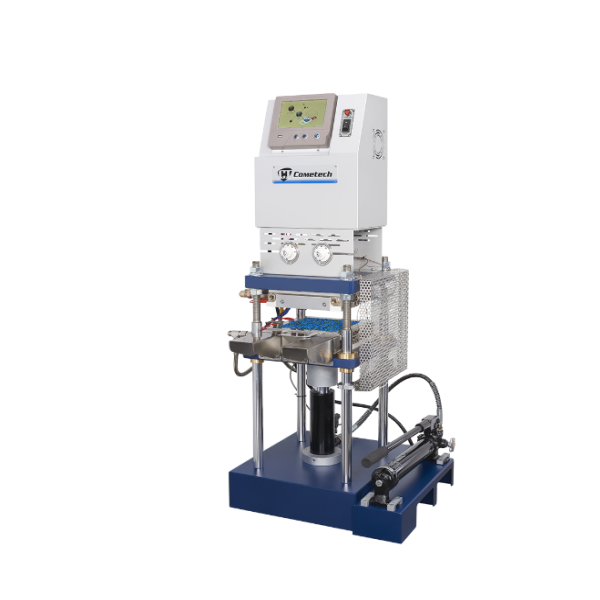

Cometech QC-677C Manual Hot Press

Capacity: 100/200/300/500 KN

Heating Plate Area:

100~300KN-250*250mm

500KN-300*300mm

Distance Between Heating Plate: 0-80mm

Temperature Range: 50~300℃ (400℃ model is optional)

Heating Rate: Room Temperature 250°C 23min

Force Range: Maximum pressure range 10-90%

Force Resolution: 0.1KN

Width (W):

100KN-530mm

200KN-730mm

300KN-780mm

500KN-850mm

Depth (D):

100KN-620mm

200KN-610mm

300KN-660mm

500KN-660mm

Height (H):

100KN-1450mm

200KN-1330mm

300KN-1330mm

500KN-1340mm

Power Consumption: 25A

Power Supply: Single phase 220/50 or 60 HZ

Weight:

100KN-200KG

200KN-250KG

300KN-300KG

500KN-350KG
