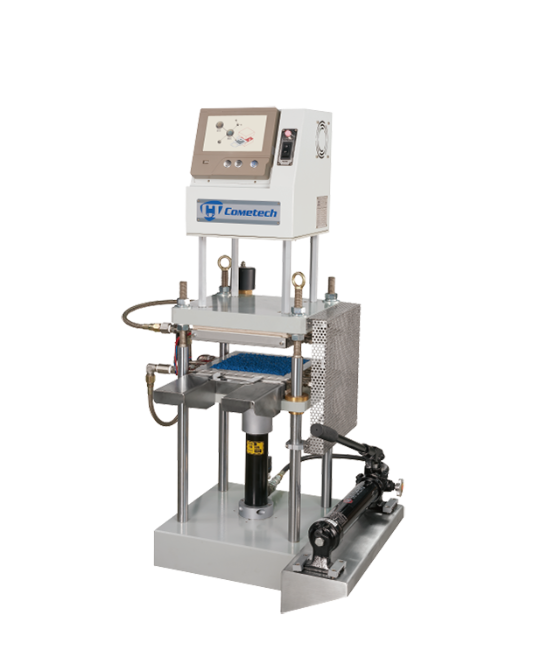

Cometech QC-677A Manual Thermo Molding Machine

Pressure(Tons): 10, 20, 30, 50 (Tons), or specified capacity

Units:

Temperature: ℃, ℉

Area: m2, cm2, mm2, ft2, in2

Force: kgf, gf, tonf(long), tonf(short), lbf, ozf, kN, N, tonf(SI)

Pressure: bar, kgf/cm2, KPa, MPa, mm-Aq(4℃), psi

Temperature: Room temperature up to 300℃

Temperature range:

Temperature rising rate: 50℃ to 150℃ about 18 minutes

Cooling rate: 150℃ to 60℃ about 10 minutes (water cooling)

Cooling method: Water cooling circulation (optional)

Dimension of a heating plate:

10, 20 tons: 25x25cm (standard)

30, 50 tons: 30×30 cm

Distance between heating plates: 60 to 100 mm (adjustable)

Accessories: 1 piece of 200 x 200 x 2mm or 250 x 250 x 2 mm forming mold (choose 1)

Control: 7”touch panel

Display: Real-time force, temperature

Power: Single phase, 220V/50Hz or 60Hz

Dimension: 53×62×145 cm(W×D×H)

Weight:

10 tons: about 200kg, 20 tons: about 250kg

30 tons: about 300kg, 50tons: about 350kg
