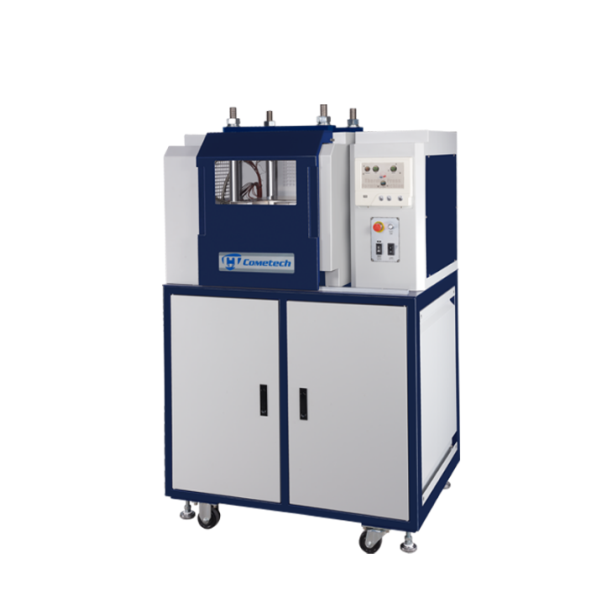

Cometech QC-674A Programmable Hot Press

Capacity: 100/200/300/500 KN

Heating Plate Area: 300*300mm (Custom sizes are available)

Distance Between Heating Plate: 0-150mm

Temperature Range: 50~300℃ (400℃ model is optional)

Heating Rate: 15±2℃/min (Room Temperature to 250℃)

Cooling Rate: 300~100℃:25±5℃/min

Cooling Rate Setting Range: 10℃,15℃,20℃,25℃,30℃

Cooling Method: Independent Heat Dissipation For Upper and Lower Heating Plates

Force Range: Maximum pressure range 10-90%

Force Accuracy: ±4%

Force Resolution: 0.01KN

Pressure Time: Capable of holding pressure for up to 8 hours

Width (W): 100KN-300KN-1170mm; 500KN-1190mm

Depth (D): 100KN-300KN-760mm; 500KN-780mm

Height (H): 1580mm

Power Consumption: 50A

Power Supply: Three phase 220V/50 or 60HZ

Weight:

100KN-570KG

200KN-620KG

300KN-650KG

500KN-780KG
