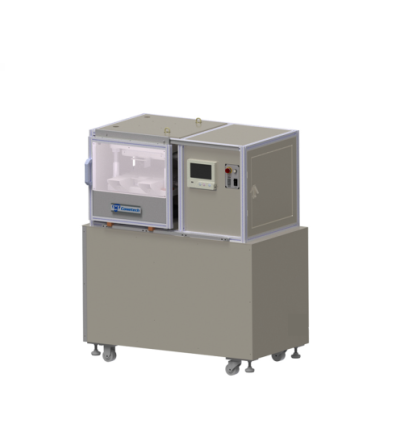

Cometech QC-674 Electricity Programmable Forming Machine

Pressure: 10、20、30、50 ton (optional)

Units: Temperature：℃、℉

Area: m2、cm2、mm2、ft2、in2

Energy: kgf、gf、tonf(long)、tonf(short)、lbf、ozf、kN、N、tonf(SI)

Pressure: bar、kgf/cm2、KPa、MPa、mm-Aq(4℃)、psi

Temperature: Room temperature~ 300℃

Size of heating plate: 30×30 cm (or designated)

Heating time: 50→150℃ take 18mins

Distance between heating plate: 120 mm (Max.)

Cooling method: Use cooling system to rapidly cool upper and lower mold

Cooling time: 150℃→60℃ 10mins

Steps can be set: Pre-press time, press time

Temperature can be set: Forming temperature, open mold temperature

Controller: 7” touch screen

Display: Instant energy, temperature, diagram

Protection: Full cover, emergency stop button

Dimension: 128×74×152 cm(W×D×H)

Weight: 680 kg
