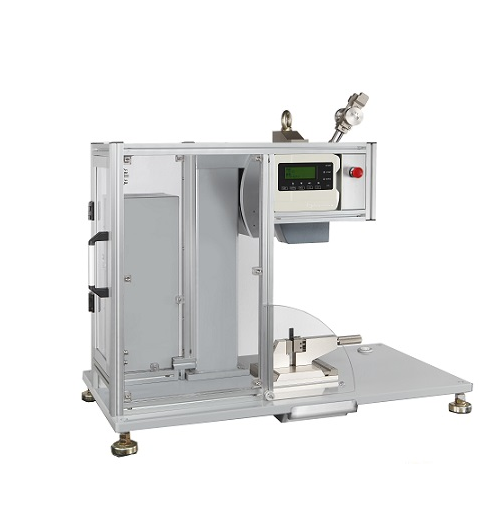

Cometech QC-639T Digital Impact Tester (1J~50J)

Initial impact angle: 150°

Test capacity: Izod 1J~50J; Charpy 1J~50J (option hummer)

(Best test range: 20 ~ 80% of the pendulum capacity)

Minimum display angle: 0.05°

Dimension: 90 × 38 × 76 cm

Weight: 160 kg

Accessory: Operation manual

Optional: Related energy test pendulum and various type of test vise. QC-640 V-shape specimen Notching Machine , Analysis software.

Note: choose option suitable nessesary

Catalog

Option

- SD101-04: Software

- QC-639 CE Protection Cover

- ISO Serial Optional Accessories:

+ IP-0004-00I: Izod vise ISO 180

+ IP-0102-00I:  Izod hammer 1J (Shared by ISO / ASTM)

+ IP-0272-00I:

Izod hammer (Dual range 2.75J and 5.5J) (Shared by ISO / ASTM)

Izod hammer (Dual range 11J and 22J) (Shared by ISO / ASTM)

Izod hammer  (Dual range 25J and 50J)(Shared by ISO / ASTM)

+ IP-0005-00I: Charpy vise ISO 179 / For Speed 2.9m/s

Block for Charpy test Speed 2.9m/s

+ IP-0005-20I: Charpy vise ISO 179 / For Speed 3.8m/s

Charpy hammer  1J / Speed 2.9m/s

Charpy hammer  2J / Speed 2.9m/s

Charpy hammer  4J / Speed 2.9m/s

+ IP-0503-F0I: Charpy hammer  5J / Speed 2.9m/s

Charpy hammer  7.5J / Speed 3.8m/s

Charpy hammer  15J / Speed 3.8m/s

Charpy hammer  25J / Speed 3.8m/s

Charpy hammer  50J / Speed 3.8m/s

- ASTM Serial Optional Accessories

+ IP-0004-00A: Izod vise ASTMD256

  Izod hammer 1J (Shared by ISO / ASTM)

+ IP-0272-F0A:

Izod hammer (Dual range 2.75J and 5.5J) (Shared by ISO / ASTM)

Izod hammer (Dual range 11J and 22J) (Shared by ISO / ASTM)

Izod hammer  (Dual range 25J and 50J) (Shared by ISO / ASTM)

+ IP-0005-00A:

Charpy vise ASTMD 6110

Charpy hammer  1J / Speed 3.46m/s

Charpy hammer  2.7J / Speed 3.8m/s

Charpy hammer  5.4J / Speed 3.8m/s

Charpy hammer  10.8J / Speed 3.8m/s

Charpy hammer  21.6J / Speed 3.8m/s

- QC-640: Impact Specimen V-Notcher

CQC-640 cutter (space for QC-640)
