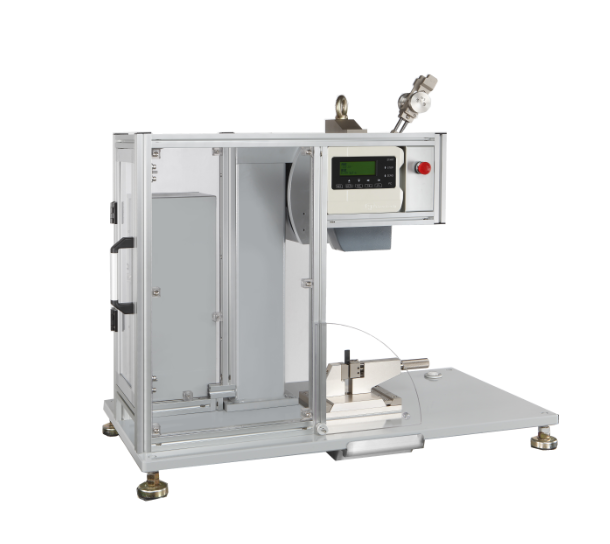

Cometech QC-639P Computerized Impact Tester (1-11J)

Test Type: IZOD / CHARPY

Capacity: IZOD 1-11J / CHARPY 1-11J (Option hummer)

Energy Loss: < 2.5%

Recommend Test Range: 20% ~ 80% of hammer capacity

Minimal Display Value: 0.05°C

Impact angle: 150°

PC- Port: TCP/IP

Power Demand: Single phase 100 ~ 240 V

Dimension: 96 x 42 x 75 cm

Weight: 210 kg

Note: choose option suitable nessesary

Option

- SD101-04: Software

- QC-639 CE Protection Cover

- ISO Serial Optional Accessories:

+ IP-0004-00I: Izod vise ISO 180

+ IP-0102-00I:  Izod hammer 1J (Shared by ISO / ASTM)

+ IP-0272-00I:

Izod hammer (Dual range 2.75J and 5.5J) (Shared by ISO / ASTM)

Izod hammer (Dual range 11J and 22J) (Shared by ISO / ASTM)

Izod hammer  (Dual range 25J and 50J)(Shared by ISO / ASTM)

+ IP-0005-00I: Charpy vise ISO 179 / For Speed 2.9m/s

Block for Charpy test Speed 2.9m/s

+ IP-0005-20I: Charpy vise ISO 179 / For Speed 3.8m/s

Charpy hammer  1J / Speed 2.9m/s

Charpy hammer  2J / Speed 2.9m/s

Charpy hammer  4J / Speed 2.9m/s

+ IP-0503-F0I: Charpy hammer  5J / Speed 2.9m/s

Charpy hammer  7.5J / Speed 3.8m/s

Charpy hammer  15J / Speed 3.8m/s

Charpy hammer  25J / Speed 3.8m/s

Charpy hammer  50J / Speed 3.8m/s

- ASTM Serial Optional Accessories

+ IP-0004-00A: Izod vise ASTMD256

  Izod hammer 1J (Shared by ISO / ASTM)

+ IP-0272-F0A:

Izod hammer (Dual range 2.75J and 5.5J) (Shared by ISO / ASTM)

Izod hammer (Dual range 11J and 22J) (Shared by ISO / ASTM)

Izod hammer  (Dual range 25J and 50J) (Shared by ISO / ASTM)

+ IP-0005-00A:

Charpy vise ASTMD 6110

Charpy hammer  1J / Speed 3.46m/s

Charpy hammer  2.7J / Speed 3.8m/s

Charpy hammer  5.4J / Speed 3.8m/s

Charpy hammer  10.8J / Speed 3.8m/s

Charpy hammer  21.6J / Speed 3.8m/s

- QC-640: Impact Specimen V-Notcher

CQC-640 cutter (space for QC-640)
