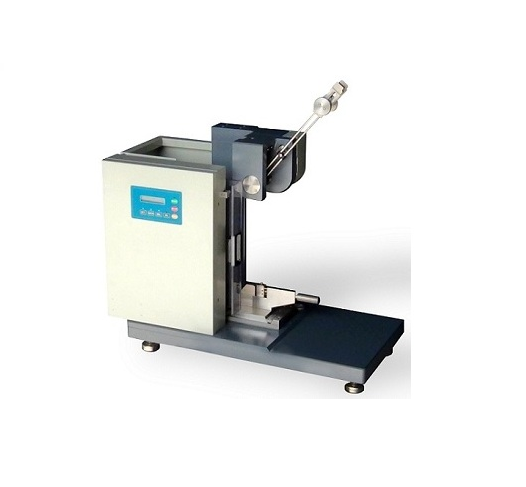

Cometech QC-639F Digital Impact Tester (1J，2.75J、5.5J、11J、22J (optional))

IZOD type (ISO-13802)

1.Capacity：1J，2.75J、5.5J、11J、22J (or appoint)

2.Impact velocity：3.5 m/sec±10％

3.Radius of striker edge：0.8±0.2mm

4.Location of striking edge above tope face of support：22±0.2mm

IZOD type (ISO-13802)

5.Optional force grip: to change the clmap force

6.Specimen width：10mm or 12.7mm

7.Specimen thickness：3 ~ 12.7mm

Charpy type(ISO-13802)　

1.Capacity：0.5J、1J、5J( or appoint)

2.Impact velocity：2.9m/sec±10％

3.Radius of striker edge：2±0.5mm

4.Radius of curvature of supports：1±0.1mm

5.Position of midplane between supports:± 0.5mm

Charpy type(ISO-13802)　

6.Specimen length：50 ~ 160 mm(span adjustable)

Others:　

1.Energy loss：< 2.5%

2.Minimum display angle：0.05 angle

3.Digital controller: calculate impact energy, impact angle automatically

4.Calculate the impact stress by specimen size

Others:　

6.With fix position device

7.With protection cover and protection lock

8.Manual or automatic (switchable)

9.Impact angle: 150°

other:　

10.Noncontact sensor: reduce the effect of friction.

11.Size：88 × 36 × 93 cm

12.Weight：180kg

13.Power：single phase, 100-240V

14.Optional accessories: software for saving and analysing data.
