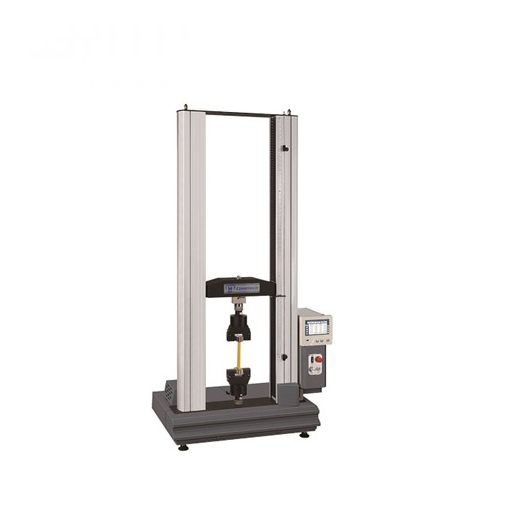

Cometech QC-546M2F UNIVERSAL materials testing machine (20kN, 800mm)

Max. Capacity: 20kN

Units: Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short); Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg

Force Precision: 1/100,000

Force Resolution: 31 bits

Test stroke: 850mm (w/o grip)

Stroke resolution: 0.0001mm

Cantilever distance: 425 mm

Speed range: 0.0002 ~ 1000 mm/min adjustable（Set up by computerized）

Speed accuracy: High speed mode: 0.05 ~ 1000 mm/min; Low speed mode: 0.0002~3 mm/min

PC-Port: RJ45(TCP/IP)(Connect software optional)

Data sampling rate:1200Hz (Max.)

Hardware safety protection: upper limit, lower limit, emergency stop

Motor type: Servo Motor

Stiffness Slop:1585kgf/mm

Power Supply:Single phase 200~240 V, 5 A

Dimension: 100 x 58 x 151 cm

Weight: 145kgf

Option:

- Display panel: EM2FTP-001

- Software: SM2F0-04

- Long extensometerQC-557

- Grips (nessesary)

- Loadcell. If want to test under 10% Max. Capacity
