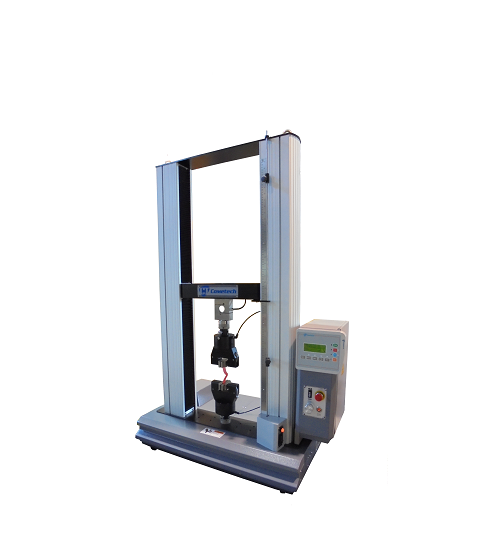

Cometech QC-546M2 Universal testing machine (20kN)

Max. Capacity: 20kN

Force resolution: 1/10000

Stroke: 800 mm (excluding grips); 1200 mm (extend height)

Stroke resolution: 0.0001mm

Space between columns: 425 mm (550mm、680mm、800mm optional)

Speed range: 0.0002 ~ 833 mm/min(Set up by computerized)

Speed precision: High speed mode: 0.05 ~ 833 mm/min ± 3%; Low speed mode: 0.0002~2.5 mm/min ± 3%

PC-Port: TCP/IP

Data sampling rate: Faster 200 Hz

Hardware Safety Protection: Up and down limit & Emergency Stop Button Protection

Motor type: Servo Motor

Power Supply: Single phase 200 ~ 240VAC，5A
