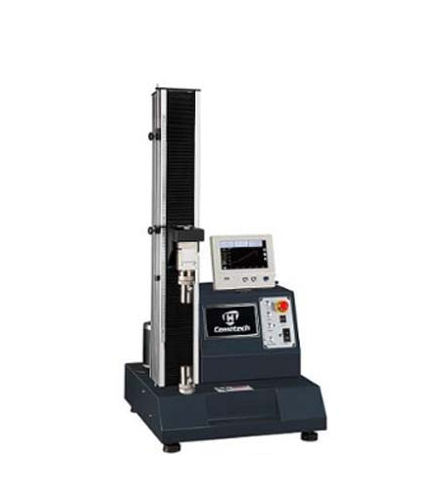

Cometech QC-513D1 UNIVERSAL materials testing machine (5kN, 400 mm)

Max. Capacity: 5kN

Force Precision: 1/10,000

Force Resolution: 1/100,000

Testing space:Ø70mm

Test stroke: 400 mm

Stroke resolution: 0.0002 mm

Cantilever distance: 70 mm

Speed range/ force: 20~35 mm/min 200kg

Speed range/ force: 35~600 mm/min 500kg

PC-Port: TCP/IP

Data sampling rate:1200Hz

Hardware protection device: upper limit, lower limit, emergency stop

Motor type: DC motor

Power Supply:Single phase 100 ~ 240 V

Dimension: 50 x 53 x 145 cm

Weight: 80kg

Includes: display unit

Option:

- Grips (nessesary)

- Software

- Long extensometerQC-557

- Loadcell. If want to test under 10% Max. Capacity
