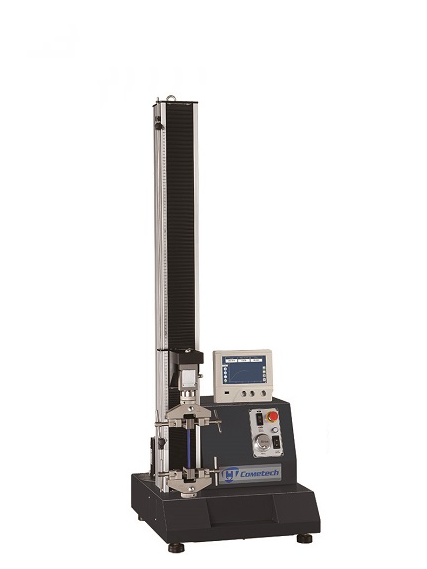

Cometech QC-508M2F UNIVERSAL materials testing machine ((5kN)

Max. Capacity: 5kN

Units: Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short); Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg

Force Precision: 1/100,000

Force Resolution: 31 bits

Test stroke: 800mm (w/o grip)

Stroke resolution: 0.0001mm

Cantilever distance: 70 mm

Speed range: 0.0002 ~ 830 mm/min adjustable（Set up by computerized）

Speed accuracy: High speed mode: 0.05 ~ 830 mm/min; Low speed mode: 0.0002~3 mm/min

PC-Port:RJ45(TCP/IP)(Connect software optional)

Data sampling rate:1200Hz (Max.)

Hardware safety protection: upper limit, lower limit, emergency stop

Motor type: Servo Motor

Stiffness Slop:1585kgf/mm

Power Supply:Single phase 200~240 V, 5 A

Dimension: 50 × 53 × 145 cm

Weight: 80kg

Option:

- Display panel: EM2FTP-001 or Software: SM2F0-04 or all (nessesary)

- Long extensometerQC-557

- Grips (nessesary)
