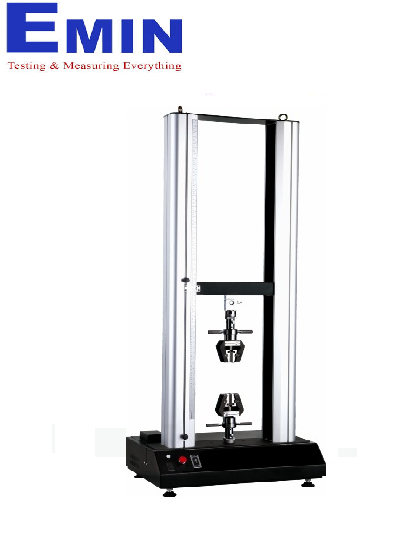

Cometech QC-506M2 Computer Computerized Tensile testing machine (20kN)

Manufacturer: Cometech

Model: QC-506M2

Origin: Taiwan

Warranty: 12 months

Max. Capacity: 20 KN

Force Resolution: 1/100,000

Test stroke: 800 mm (without grip); 1200 mm (extend height)

Stroke resolution: 0.0001 mm

Space between columns: 425 mm (550mm、680mm、800mm, optional)

Speed range: 0.0002 ~830 mm/min （Set up by computerized）

Speed precision: High speed mode: 0.05 ~ 833 mm/min ± 3%; Low speed mode: 0.0002~2.5 mm/min ± 3%

PC-Port: TCP/IP

Motor type: Servo Motor

Data sampling rate: Faster 200HZ

Hardware safety protection: Up/down limit, emergency stop button

Power Supply: Single phase 200 ~ 240VAC，5A

Dimension: 86 × 60 × 150 cm

Weight: 145 kg
