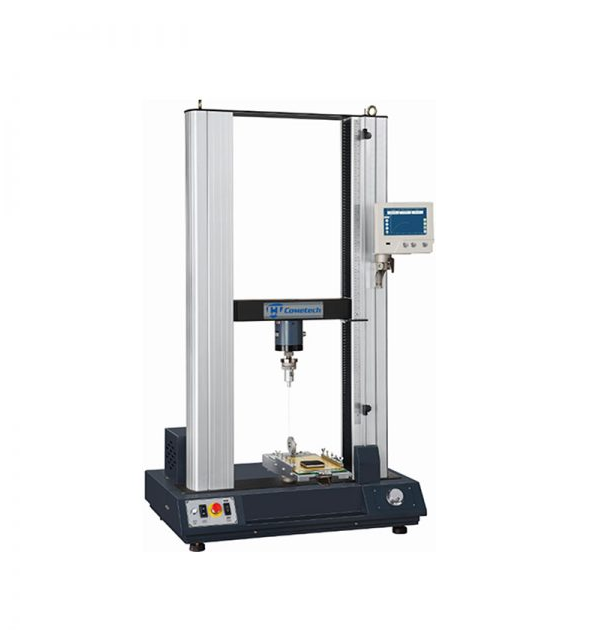

Max. Capacity: 20kN
Units: Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short); Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg
Force Resolution: 31 bits
Force Precision: 1/100,000
Test stroke: 1200 mm (w/o grip)
Stroke resolution: 0.0001 mm
Space between columns: 425 mm (550mm, 680mm, 800mm for optional)
Speed range: 0.2 ~ 830 mm/min (Can be set by computer digital)
PC-Port: RJ45(TCP/IP) [software optional]
Data sampling rate: 400Hz (Max.)
Hardware safety protection: upper limit, lower limit, emergency stop
Motor type: Servo Motor
Stiffness Slop: 1484 kgf/mm
Power Supply: Single phase 200 ~ 240VAC，5A
Dimension: 95 x 58 x 190 cm
Weight: 170 kg
Option:
- Display panel: EM2FTP-001 or Software: SM1F0-04 or all (nessesary)
- Long
extensometer QC-557
- Grips (nessesary)
