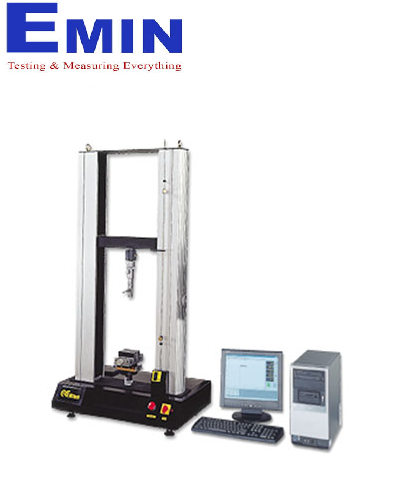

Cometech QC-506A2 Universal testing machine (20kN)

Manufacturer: Cometech

Model: QC-506A2

Origin: Taiwan

Warranty: 12 months

Max. Capacity: 20kN

Force Resolution: 1/20,000

Stroke: 800mm （without grips）; 1200 mm (extend height)

Stroke Resolution: 0.0001 mm

Space between two columns: 425mm (550mm, 680mm, 800mm optional)

Test speed: 0.2～800 mm/min, adjusting by computer

Speed precision: 0.2~10 mm/min ± 2% ; 10~800 mm/min ± 1%

PC-Port: USB

Hardware safety protection: Up/down limit, emergency stop button

Power: Single phase 200 ~ 240VAC，5A

Dimension: 72×51×132cm

Weight: 115kg
