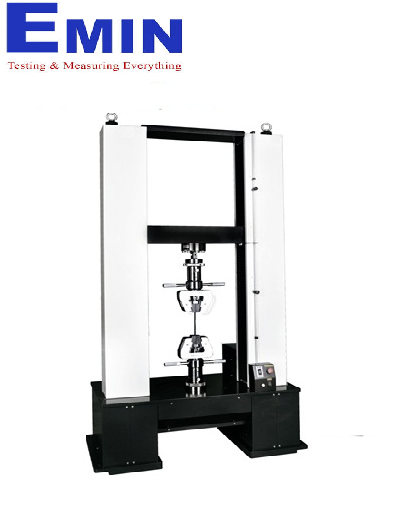

Cometech QC-502A2 Universal testing machine (200KN)

Manufacturer: Cometech

Model: QC-502A2

Origin: Taiwan

Warranty: 12 months

Max. Capacity: 200 KN

Force resolution: 1/20,000

PC-Port: USB

Stroke: 1100mm

Stroke resolution: 0.0001 mm

Space between columns: 550 mm

Test speed: 0.1~300mm/min

Speed precision: 0.1~3 mm/min ±2% ; 3 ~300 mm/min ±1%

Hardware safety protection: Up/down limit, emergency stop button

Mechanism configuration: Adopting Servo-motor driven, precise decelerators and ball screws to reduce the noisy, loss of transmission.

Force sensor: Load Cell comply with ASTM-E4 standard which accuracy is limited within 1.0 %

Power supply: 3 phase 200~240VAC，20A

Dimension: 120x70x235cm

Weight:1250kgs
