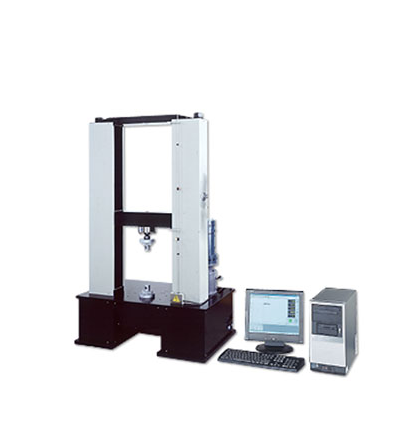

Cometech QC-501A2 Universal testing machine (300kN)

Capacity: 300KN

Stroke:　 1100mm(without grips)

Force precision:　 1/20,000

Stroke resolution:　 0.0001 mm

Test speed:　 0.1~300mm/min

Speed precision:　 0.1 ~ 3 mm/min ± 2% ; 3 ~ 300 mm/min ± 1%

Distance between two columns:　 550mm

PC Port:　 USB

Hardware protection:　 up/down limit, emergency stop button.

Mechanism configuration:　 Adopting Servo-motor driven, precise decelerators and ball screws to reduce the noisy, loss of transmission.

Force sensor:　 Load Cell comply with ASTM-E4 standard which accuracy is limited within 1.0 %

Power:　 3 phase,200~240VAC, 30A

Dimension:　 140 x 70 x 235 cm

Weight:　 1250 kg
